Free 300-510 Practice Test Questions 2026

Refer to the exhibit. R1 is sending data traffic to R6 using the same SRGB range as the other routers in the topology, but it is also using a non-default SRLB range. Which two configuration tasks must the engineer perform to enable normal SRGB and SRLB operations on this network? (Choose two.)

A. Configure an adjacency SID from SRLB range 1002 to 6005.

B. Configure router R2 with adjacency SID 4002 to enable it to reach R4.

C. Configure router R1 with adjacency SID 1003 tcPegable it to reach R2.

D. Set the default SRGB range to 16000 to 23999.

E. Set the SRGB range to 1002 to 6005

Refer to the exhibit.

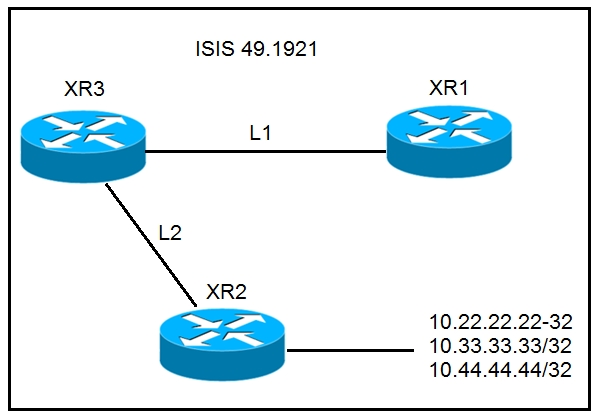

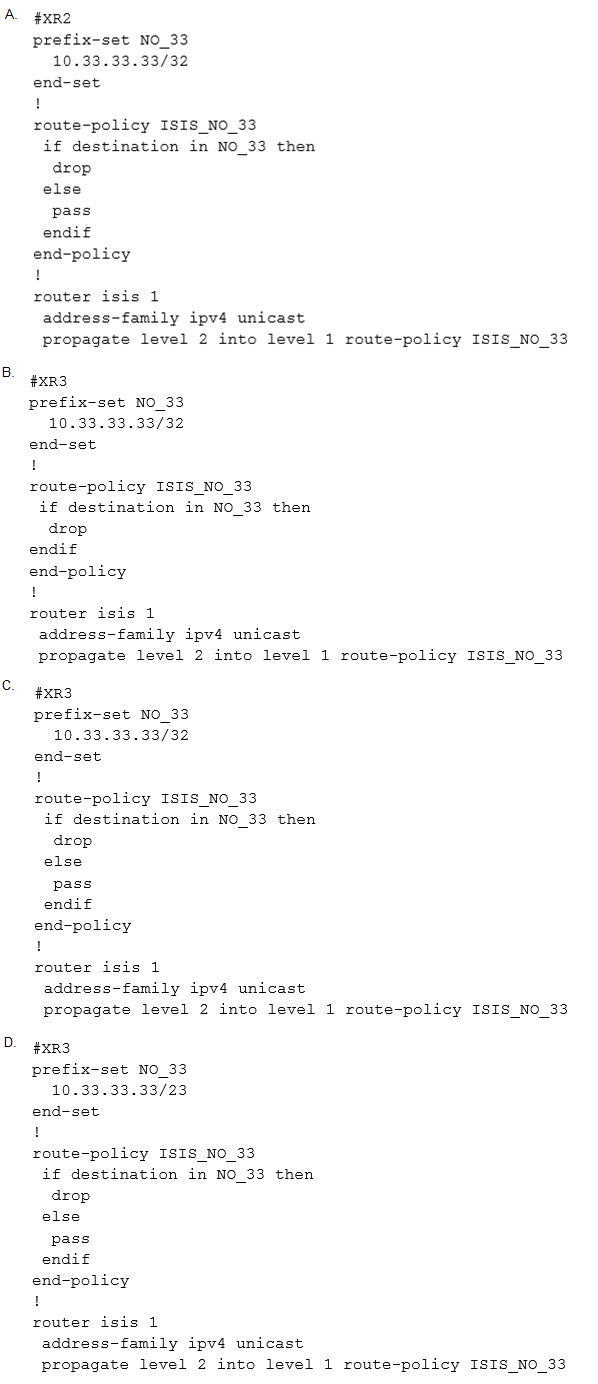

A network operator must stop 10.33.33.33/32 from being redistributed into Level 1 router XR1. Which configuration meets this need?

A. Option A

B. Option B

C. Option C

D. Option D

Refer to the exhibit.

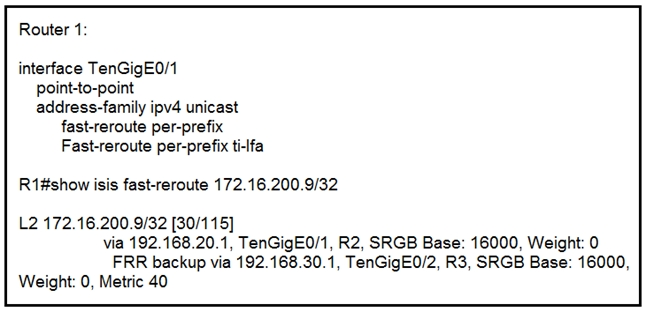

Router 1 is connected to router 2 on interface TenGigE0/1. Which interface provides the alternate path to 172.16.200.9/32 when the link between router 1 and router 2 goes down?

A. TenGigE0/1 interface provides the alternate path

B. A backup path must be statically installed

C. TenGigE0/2 interface provides the alternate path

D. A primary path must be manually installed

Refer to me exhibit.

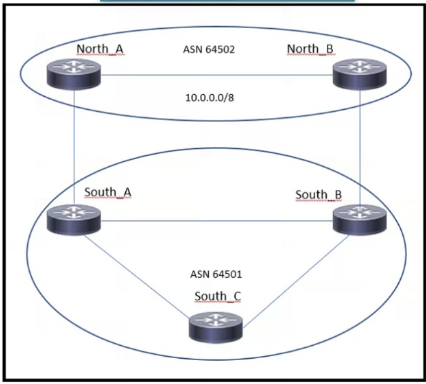

A network engineer sets up a multihoming eBGP topology where multiple Autonomous Systems connect to ASN 64501. The engineer wants to block all the routers coming from ASN 64502. but allow all the others. For that purpose, the following AS Pam prefix 1st s being used:

What must be fixed to achieve this result?

A. The AS-PATH filter must be defined inside the route-map mode

B. At the end ip as-path access-list 10 permit .* must be included

C. The statement must be modified with ip as-path access-list 1 deny _64502_

D. The statement must CM modified with ip as path access list 1 deny A64502$

Refer to the exhibit.

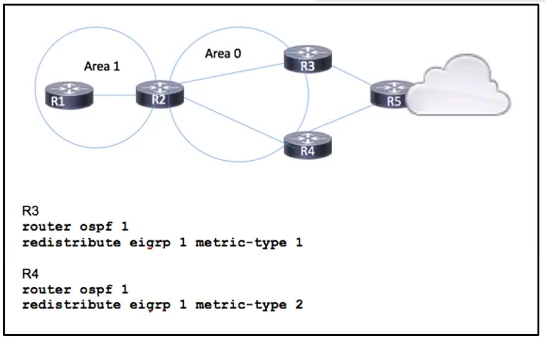

Routers R1, R2. R3, and R4 have been configured to run OSPF. and router R5 is running EIGRP Traffic from R1 to R5 is expected to pass via R4. but OSPF routing has calculated the best path via R3. Which action corrects the problem?

A. Configure R3 to use metric-type 1 with a higher metric than R4.

B. Configure R1 with a static route to the R5 networks and set R5 as the next hop.

C. Reconfigure R1 in Area 0.

D. Change the metric-type value on R3 to 2.

Refer to the exhibit.

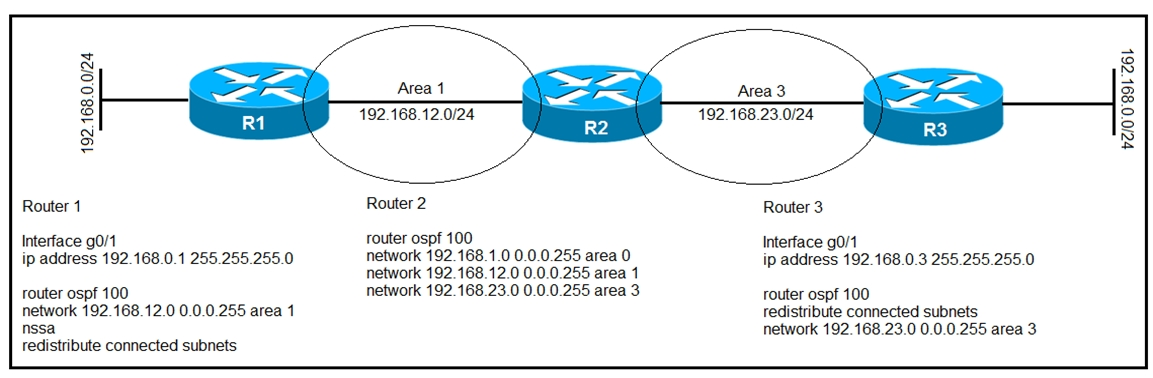

After troubleshooting an OSPF adjacency issue, routers 1, 2, and 3 have formed OSPF neighbor relationships. Which statement about the configuration is true?

A. Router 2 receives a Type 5 LSAs from router 1 for its connected subnets

B. Router 2 uses router 3 as the next hop for 192.168.0.0/24

C. Router 2 uses router 1 as the next hop for 192.168.0.0/24

D. Router 2 receives a Type 7 LSAs from router 3 for its connected subnets

Refer to the exhibit.

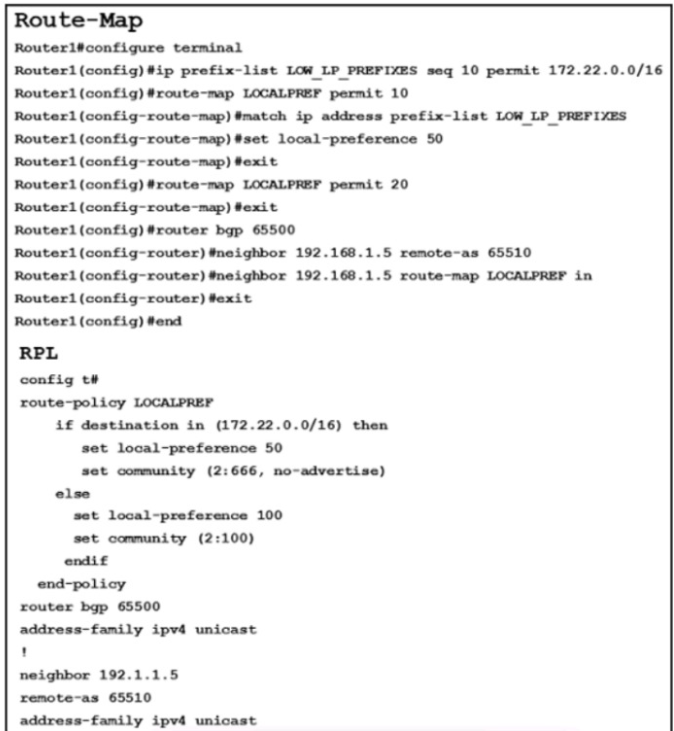

An engineer is comparing these RPL and route map configurations. Which two conclusions will the engineer reach? (Choose two.)

A. RPL is applying policy only on BGP IPv6 address families, but the route map is applying policy on BGP IPv4 and IPv6 address families.

B. RPL and the route map are applying only local preference 50 for prefix 172.22.0.0/16.

C. RPL is applying local preference 100 and community (2:100) for multiple prefixes, but the route map is applying default local preference for multiple prefixes

D. RPL is applying local preference 50 and community (2:666) for prefix 172.22.0.0716. but the route map is applying only local preference 50 for the same prefix

E. RPL is applying local preference 50 and community (2:666) for all prefixes, but the route map is applying only local preference 50 for all prefixes.

What are two differences between OSPF and IS-IS? (Choose two.)

A. OSPF is a link-state routing protocol, and IS-IS is a distance-vector routing protocol.

B. OSPF uses a router ID to identify a router, and IS-IS uses a system ID.

C. OSPF elects a DR and a BDR, and IS-IS elects a DIS.

D. Unlike OSPF. IS-IS supports virtual links.

E. Unlike IS-IS routers, an OSPF router belongs to only one area in addition to the backbone area.

Guidelines

This is a lab item in which tasks will be performed on virtual devices.
Refer to the Tasks tab to view the tasks for this lab item.
Refer to the Topology tab to access the device console(s) and perform the tasks.
Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
All necessary preconfigurations have been applied.
Do not change the enable password or hostname for any device.
Save your configurations to NVRAM before moving to the next item.
Click Next at the bottom of the screen to submit this lab and move to the next question.
When Next is clicked, the lab doses and cannot be reopened.

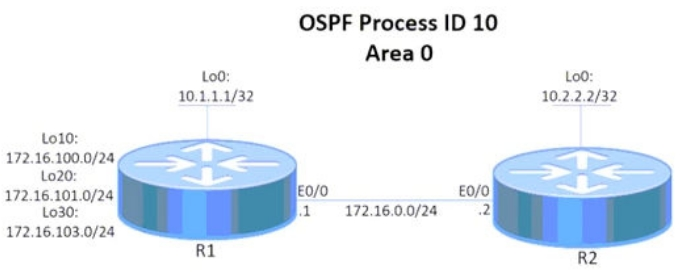

Topology

Tasks

Configure and verify an OSPF neighbor adjacency between R1 and R2 in OSPF area 0 according to the topology to achieve these goals:

1. R1 pings the Loopback0 interface of R2. Use interface-level configuration to complete this task.
2. R2 pings the Loopback0 interface of R1. Use interface-level configuration to complete this task.
3. R2 receives a single summary route 172.16.100.0/22 for networks 172.16.100.0/24, 172.16.101.0/24, and 172.16.103.0/24.

Refer to the exhibit.

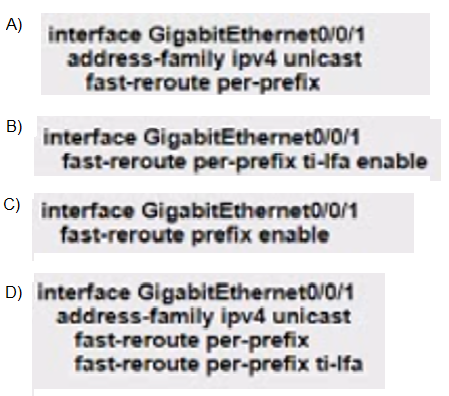

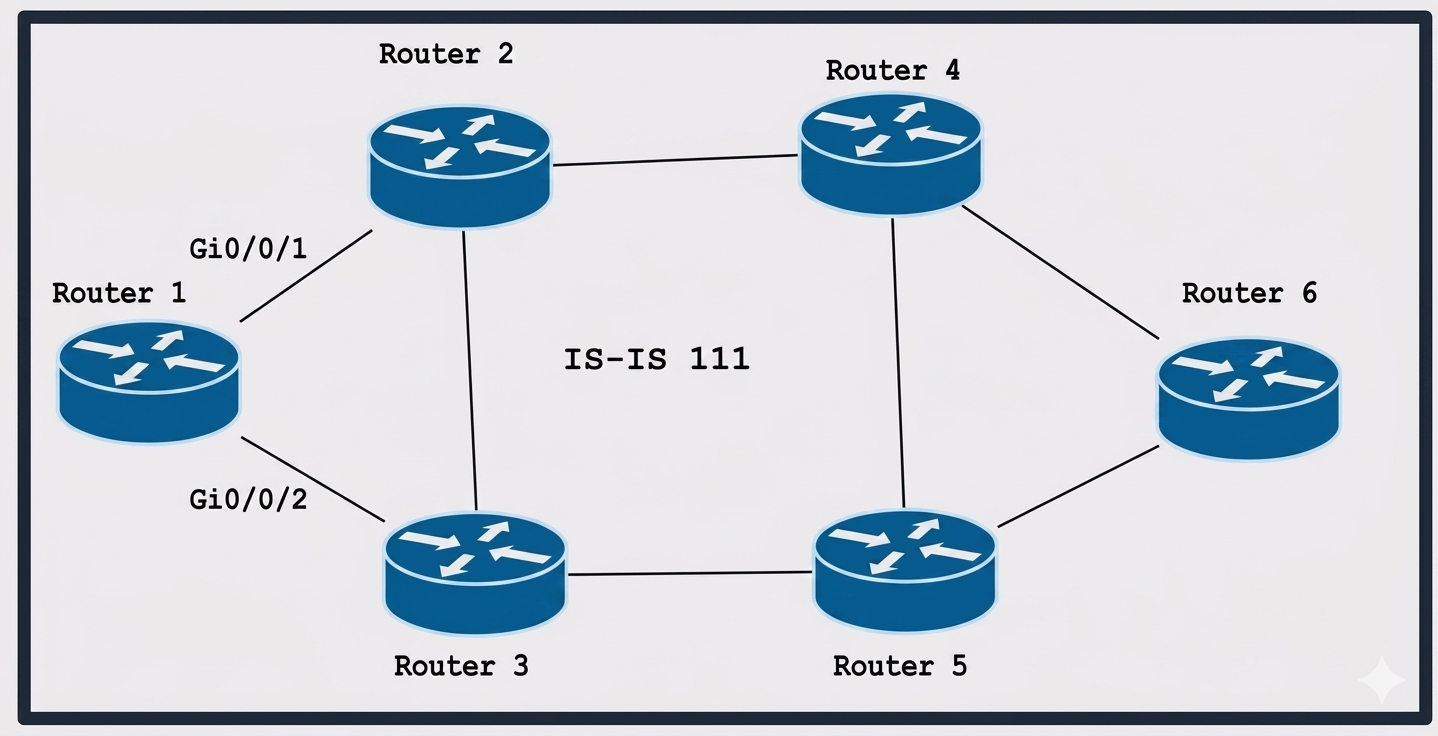

Router 1 resides in a different data center than Rouler 2 and Router 3. Router 1 is running the IS-IS routing protocol, and it is preconfigured with LDP and segment routing Which configuration must the engineer apply under router isis 111 on Router 1 to implement Tl-LFA on the link to Router 2 without disrupting traffic to Router 3?

A. Option A

B. Option B

C. Option C

D. Option D

What is the difference between RPL and route-maps?

A. Unlike RPL. route-maps are supported with IPv4 address families only

B. Unlike route-maps, only RPL supports extcommunity sets to group extended communities.

C. Unlike RPL. route-maps are designed for BGP protocol only.

D. Unlike route-maps, only RPL is designed for bulk configuration of multiple devices.

What is the purpose of ACL type prefix set entries in RPL prefix sets?

A. They hold IPv4 or IPv6 prefixes that do not match specifications.

B. They hold IPv4 or IPv6 prefix match specifications.

C. They hold IPv6 prefix match specifications.

D. They hold IPv4 prefixes that do not match specifications.
