Refer to the exhibit.

R1 has a route map configured, which results in a loss of partial IPv6 prefixes for the BGP neighbor, resulting in service degradation. How can the full service be restored?

A.

The neighbor requires a soft reconfiguration, and this will clear the policy without resetting the BGP TCP connection.

B.

The prefix lit requires all prefixes that R1 is advertising to be added to it, and this will allow additional prefixes to be advertised.

C.

The route map requires a deny 20 statement without set conditions, and this will allow additional prefixes to be advertised.

D.

The route map requires a permit 20 statement without set conditions, and this will allow additional prefixes to be advertised.

What is an advantage of implementing BFD?

A.

BFD provides faster updates for any flapping route.

B.

BFD provides millisecond failure detection

C.

BFD is deployed without the need to run any routing protocol

D.

BFD provides better capabilities to maintain the routing table

A.

Option A

B.

Option B

C.

Option C

D.

Option D

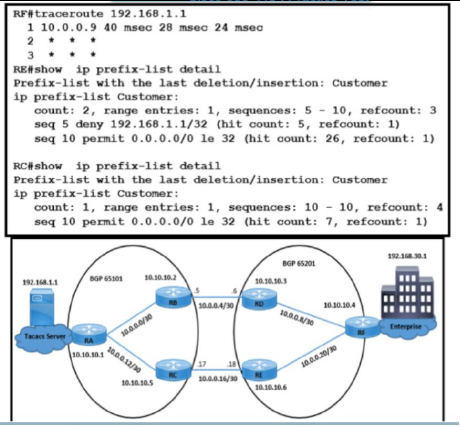

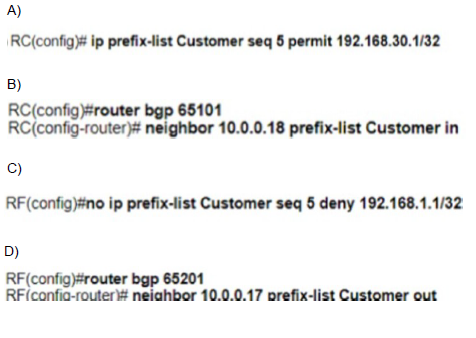

Refer to the exhibit The enterprise users fail to authenticate with the TACACS server when a direct fiber link fails between RB and RD The NOC team observes
Users connected on AS65201 fail to authenticate with TACACS server 192 168 1
1
Users connected on AS65101 successfully authenticate with TACACS server 192
168 1 1
All AS65101 and AS65201 users are configured to authenticate with the TACACS
server

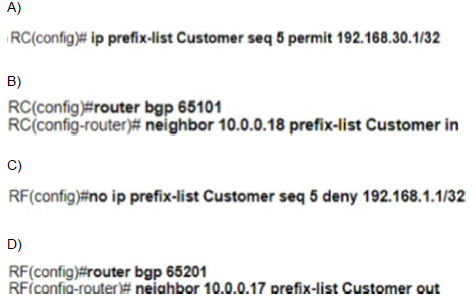

Which configuration resolves the issue?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

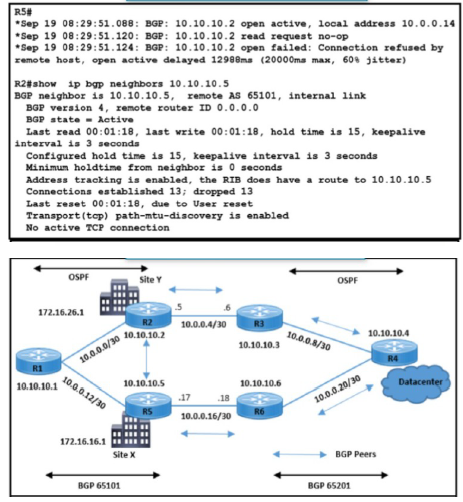

Refer to the exhibit A customer reported a failure and intermittent disconnection between two office buildings site X and site Y The network team finds that site X and site Y are exchanging email application traffic with the data center network Which configuration resolves the issue between site X and site Y?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

A.

Option A

B.

Option B

C.

Option C

D.

Option C

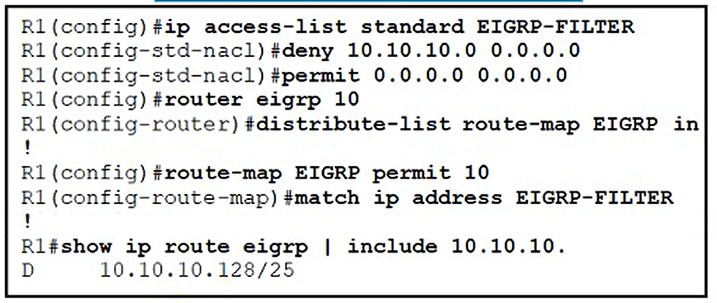

Refer to lhe exhibit An engineer must filter EIGRP updates that are received to block all 10 10 10.0/24 prefixes The engineer tests the distribute list and finds one associated prefix. Which action resolves the issue?

A.

There is a permit in the route map that allows this prefix A deny 20 statement is required with a match condition to match a new ACL that denies all prefixes

B.

There is a permit in the ACL that allows this prefix into EI6RP. The ACL should be modified to deny 10.10.10.0 0.0.0.255.

C.

There is a permit in the route map that allows this prefix A deny 20 statement is required with no match condition to block the prefix.

D.

There is a permit in the ACL that allows this prefix into EIGRP. The ACL should be modified to deny 10.10.10.0 255.255.255.0.

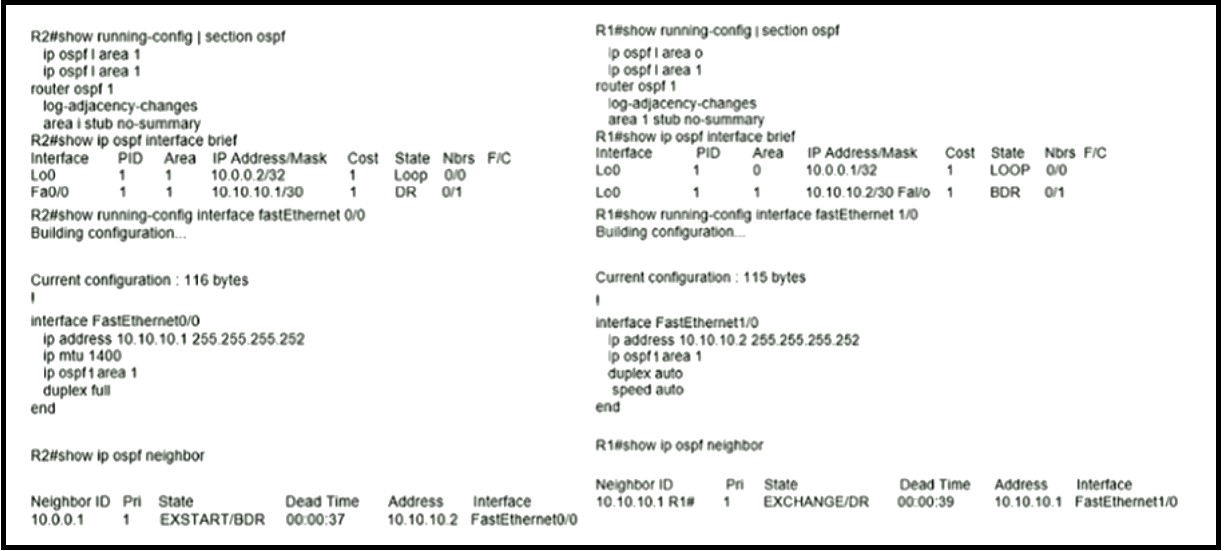

Refer to the exhibit.

Which action restores OSPF adjacency between R1 and R2?

A.

Change the IP MTU of R1 Fa1/0 to 1300

B.

Change the IP MTU of R2 Fa0/0 to 1300

C.

Change the IP MTU of R1 Fa1/0 to 1500

D.

Change the IP MTU of R2 Fa0/0 to 1500

The network administrator must implement IPv6 in the network to allow only devices that not only have registered IP addresses but are also connecting from assigned locations. Which security feature must be implemented?

A.

IPv6 Snooping

B.

IPv6 Destination Guard

C.

IPv6 Prefix Guard

D.

IPv6 Router Advertisement Guard

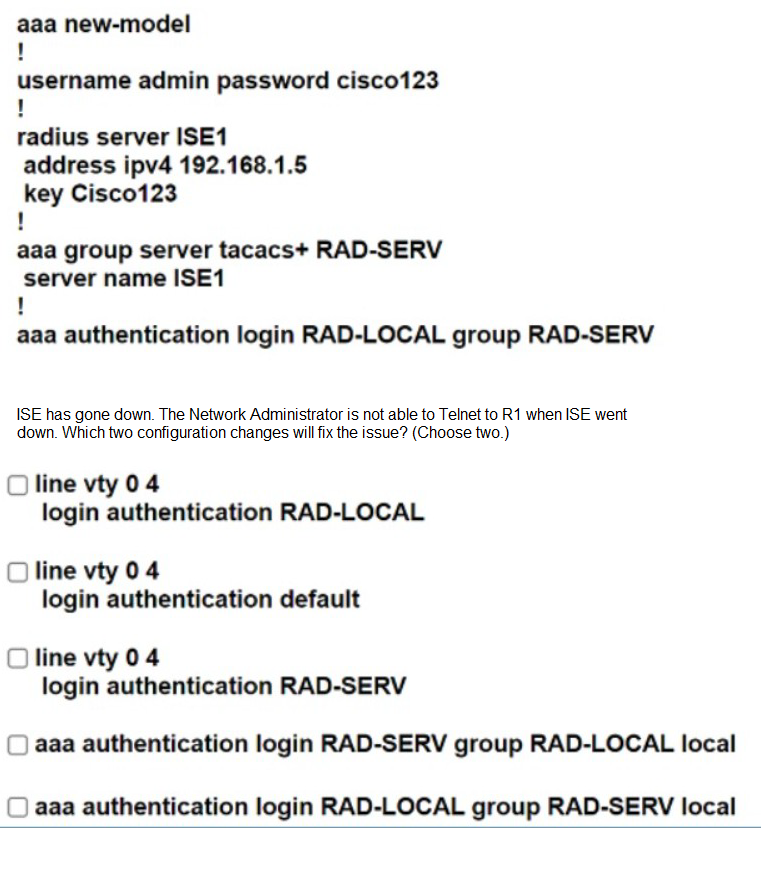

The network administrator is tasked to configure R1 to authenticate telnet connections based on Cisco ISE using RADIUS. ISE has been configured with an IP address of 192.168.1.5 and with a network device pointing towards R1 (192.168.1.1) with a shared secret password of Cisco123. If ISE is down, the administrator should be able to connect using the local database with a username and password combination of admin/cisco123.

The administrator has configured the following on R1:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

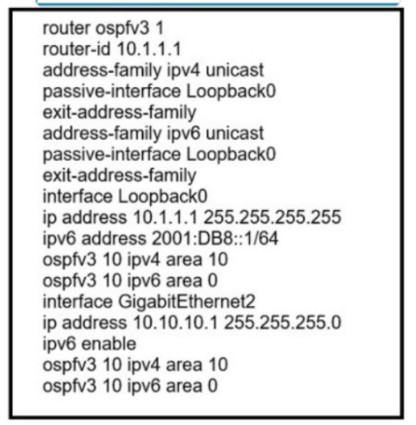

Refer to the exhibit.

An administrator must configure the router with OSPF for IPv4 and IPv6 networks under a single process. The OSPF adjacencies are not established and did not meet the requirement. Which action resolves the issue?

A.

Replace OSPF process 10 on the interface with OSPF process 1, and configure an additional router ID with IPv6 address.

B.

Replace OSPF process 10 on the interface with OSPF process 1, for the VPv6 addressma nd remove process route ID with IPv6 address.

C.

Replace OSPF process 10 on the interface with OSPF process 1, and remove process 10 from the global configuration.

D.

Replace OSPF process 10 on the interface with OSPF process 1 for the IPv4 address, and remove process 10 from the global configuration.

Refer to the exhibit.
A network engineer receives a fault ticket about traffic drops from BANK SITE to BANK Users can reach BANK SITE Y from router RA as a source.
Routers RB and RD are acting as route reflectors. Which configuration resolves the issue?

A.

RC(config)#router bgp 65201
RC(config-router)#neighbor 10.10.10.4 route-reflector-client

B.

RF(config)#router bgp 65201
RF(config-router)#neighbor 10.10.10.6 route-reflector-client

C.

RC(config)#router bgp 65201
RC(config-router)#neighbor 10.10.10.2 route-reflector-client

D.

RB(config)router bgp 65201
RB(config-router)#neighbor 10.10.10.3 route-reflector-client
