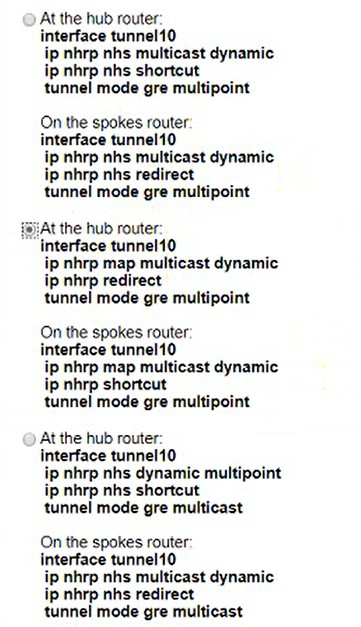

A network engineer must configure a DMVPN network so that a spoke establishes a direct path to another spoke if the two must send traffic to each other. A spoke must send traffic directly to the hub if required Which configuration meets this requirement?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

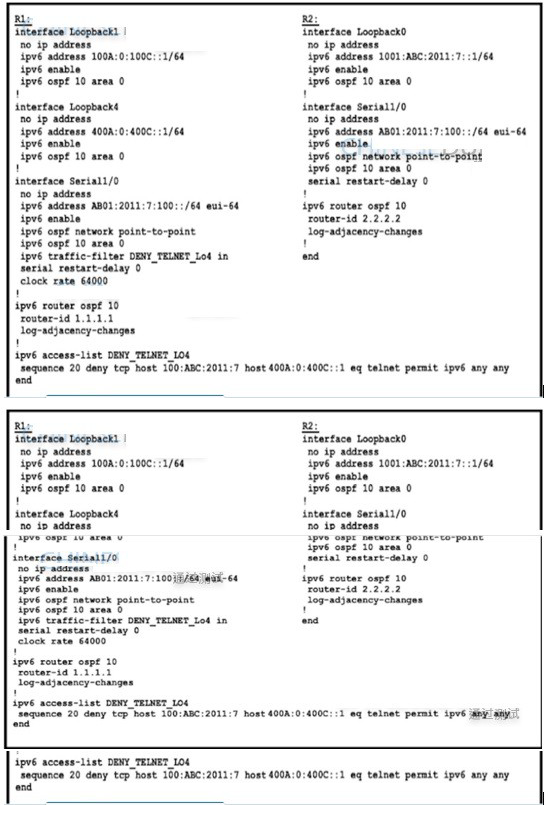

Refer to the exhibit. An engineer implemented an access list on R1 to allow anyone to Telnet except R2 Loopback0 to R1 Loopback4 How must sequence 20 be replaced on the R1 access list to resolve the issue?

A.

sequence 20 permit tcp host 1001 ABC:2011:7:: 1 host 400A:0:400C::1 eq telnet

B.

sequence 20 deny tcp host 400A:0:400C::1 host 1001 :ABC:2011:7::1 eq telnet

C.

sequence 20 deny tcp host 1001:ABC:2011:7::1 host 400A:0:400C::1 eq telnet

D.

sequence 20 permit tcp host 400A:0:400C::1 host 1001ABC:2011:7::1 eq telnet

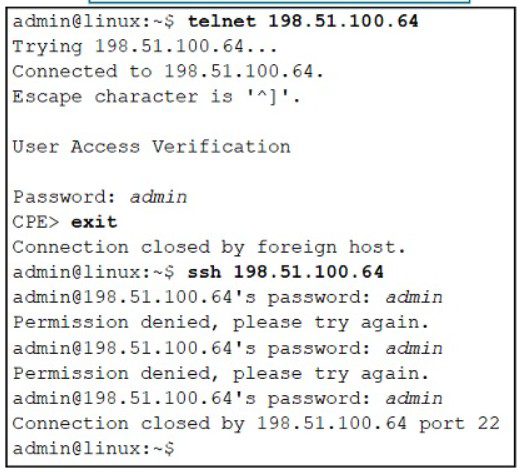

Refer to the exhibit. An administrator can log in to the device using Telnet but the attempts to log in to the same device using SSH with the same credentials fail Which action resolves this issue?

A.

Configure SSH service on the router

B.

Configure transport input all on the VTY lines to allow SSH

C.

Configure to use the Telnet user database for SSH as well

D.

Configure the VTY lines with login local

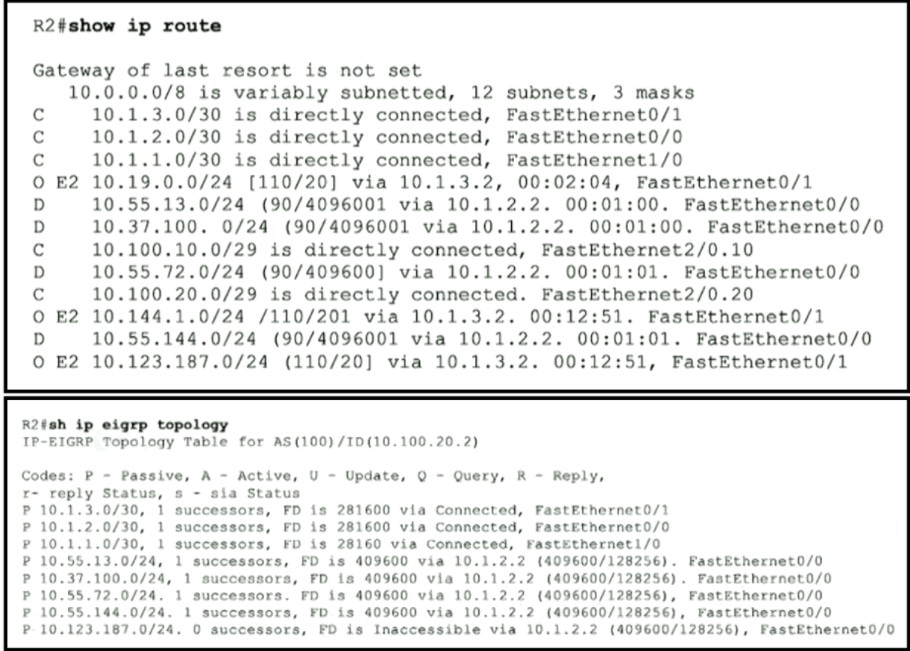

Refer to the exhibit.

Router R2 should be learning the route for 10.123.187.0/24 via EIGRP. Which action resolves the issue without introducing more issues?

A.

Use distribute-list to modify the route as an internal EIGRP route

B.

Redistribute the route in EIGRP with metric, delay, and reliability

C.

Use distribute-list to filter the external router in OSPF

D.

Remove route redistribution in R2 for this route in OSPF

Refer to the exhibit. An engineer cannot determine the time of the problem on R1 due to a mismatch between the router local clock and legs. Which command synchronizes the time between new log entries and the local clock on R1?

A.

service timestamps debug datetime msec show.timezone

B.

service timestamps log datetime locatetime msec

C.

service timestamps datebug datetime localtime msec

D.

service timestamps log datetime msec show-timezone

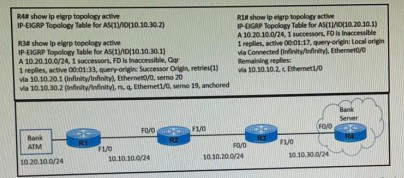

Refer to the exhibit.

A bank ATM site has difficulty connecting with the bank server. A network engineer troubleshoots the issue and finds that R4 has no active route to the bank ATM site. Which action resolves the issue?

A.

Advertise 10.10.30.0/24 subnet in R1 EIGRP AS.

B.

EIGRP peering between R3 and R4 to be fixed.

C.

EIGRP peering between R1 and R2 to be fixed.

D.

Advertise 10.10.30.0/24 subnet in R3 EIGRP AS.

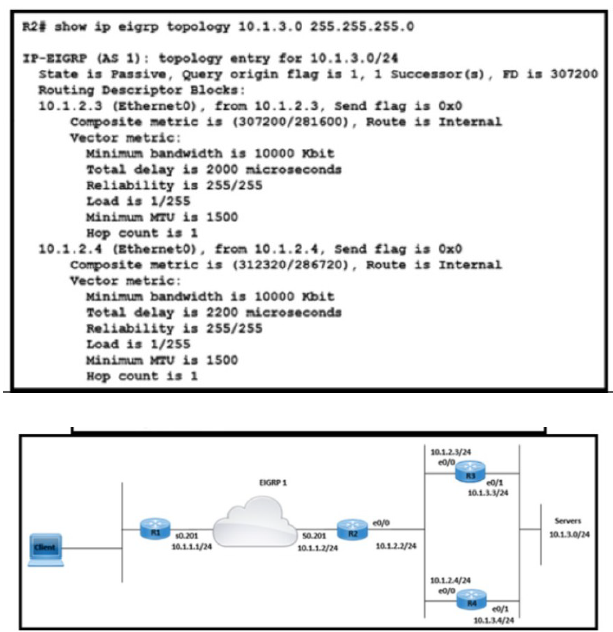

Exhibit.

Refer to the exhibit. A network is configured for EIGRP equal-cost load balancing, but the traffic destined to the servers is not load balanced. Link metrics from router R2 to R3 and R4 are the same. Which delay value must be configured to resolve the issue?

A.

208 oon R3 E0/0

B.

120 on R4 E0/1

C.

120/on R3 E0/1

D.

2200 on R4 E0/1

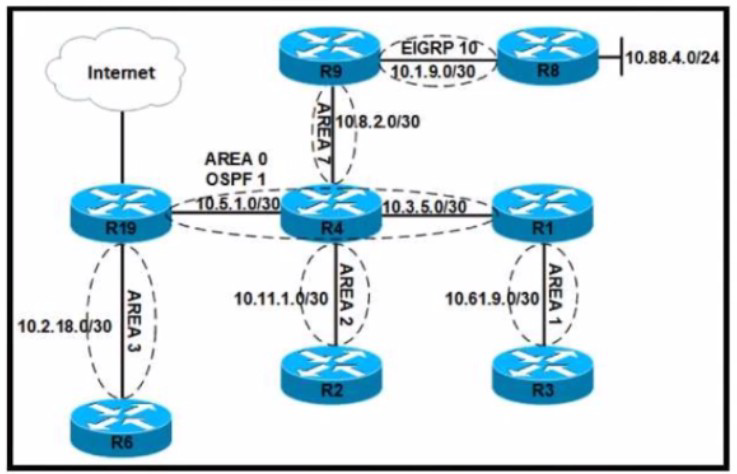

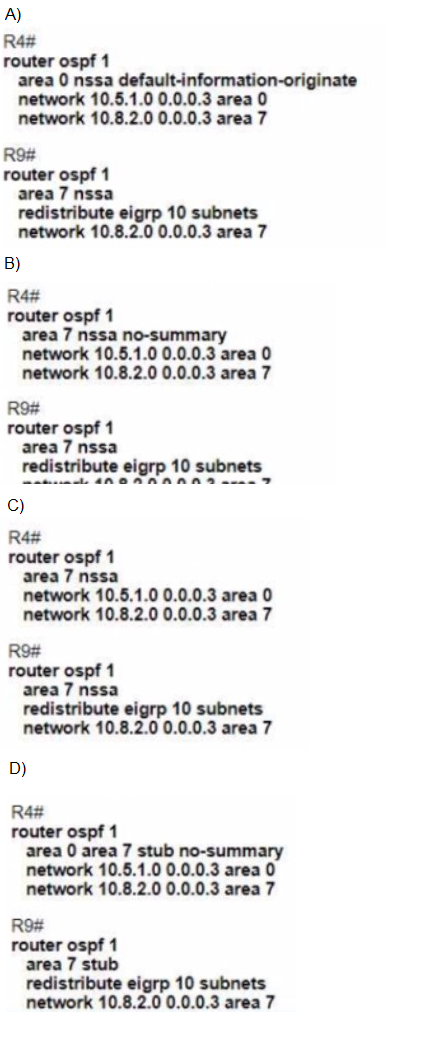

Refer to the exhibit After an engineer modified the configuration for area 7 to permit type 1 2 and 7 LSAs only users connected to router R9 reported that they could no longer access the internet. Which configuration restores internet access to users on R9 and permits only LSA type 1,2, and 7?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

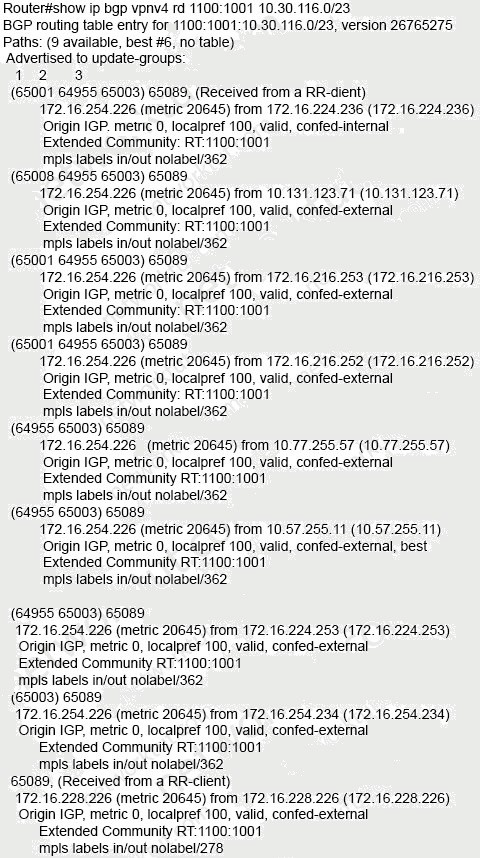

Refer to the exhibit.

An engineer configured BGP and wants to select the path from 10.77.255.57 as the best path instead of current best path. Which action resolves the issue?

A.

Configure AS_PATH prepend for the current best path

B.

Configure higher MED to select as the best path

C.

Configure AS_PATH prepend for the desired best path

D.

Configure lower LOCAL_PREF to select as the best path

What is a function of BFD?

A.

peer recovery after a Layer 3 protocol adjacency failure

B.

peer recovery after a Layer 2 adjacency failure

C.

failure detection independent of routing protocols and media types

D.

failure detection dependent on routing protocols and media types

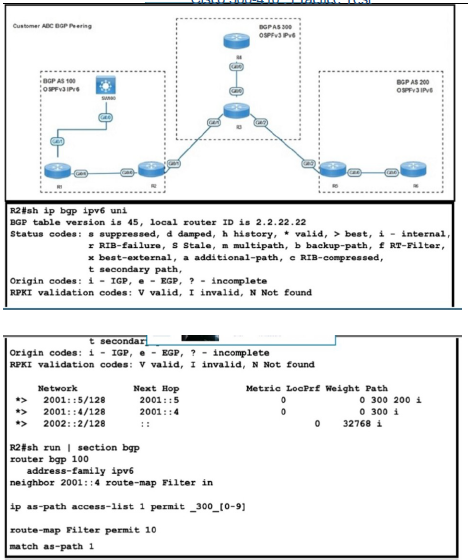

Refer to the exhibit R2 has been receiving routes from R4 that originated outside AS300 A network engineer configured an AS-Path ACL to avoid adding these routes to the R2 BGP table but the routes are still present in the R2 routing table Which action resolves the issue?

A.

Replace as-path access-list 1 with the ip as-path access-list 1 permit A300$ command

B.

Replace as-path access-list 1 with the ip as-path access-list 1 permit ..300." command

C.

Replace as-path access-list 1 with the ip as-path access-list 1 permit A300_ command.

D.

Replace as-path access-list 1 with the ip as-path access-list 1 permit A300." command

An engineer creates a Cisco DNA Center cluster with three nodes, but all the services are running on one host node. Which action resolves this issue?

A.

Restore the link on the switch interface that is connected to a cluster link on the Cisco DNA Center

B.

Click the master host node with all the services and select services to be moved to other hosts

C.

Enable service distribution from the Systems 360 page.

D.

Click system updates, and upgrade to the latest version of Cisco DNA Center.
