Refer to the exhibit.

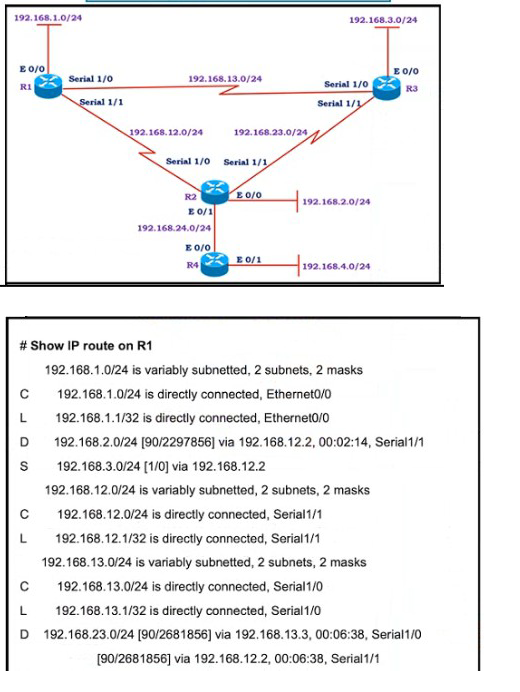

All the serial between R1, R2, and R3 have the Same bandwidth. User on the 192.168.1.0/24 network report slow response times while they access resource on network 192.168.3.0/24. When a traceroute is run on the path. It shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator to fix the slowness?

A.

Change the Administrative Distance of EIGRP to 5.

B.

Add a static route on R1 using the next hop of R3.

C.

Remove the static route on R1.

D.

Redistribute theR1 route to EIGRP

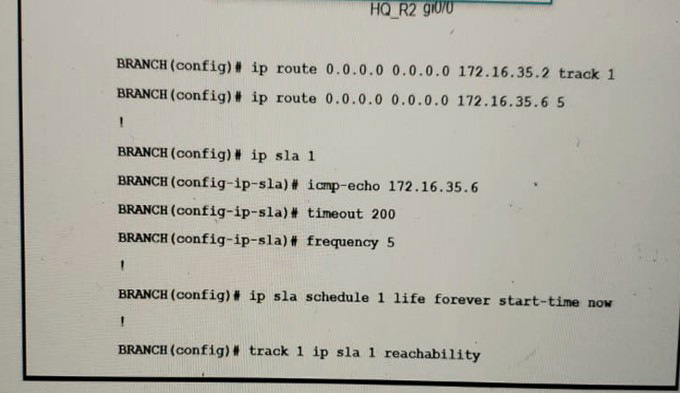

Refer to Exhibit.

Traffic from the branch network should route through HQ R1 unless the path is unavailable. An engineer tests this functionality by shutting down interface on the BRANCH router toward HQ_R1 router but 192.168.20.0/24 is no longer reachable from the branch router. Which set of configurations resolves the issue?

A.

HQ_R1(config)# ip sla responder
HQ_R1(config)# ip sla responder icmp-echo 172.16.35.2

B.

BRANCH(config)# ip sla 1
BRANCH(config-ip-sla)# icmp-echo 172.16.3

C.

HQ_R2(config)# ip sla responder
HQ_R2(config)# ip sla responder icmp-echo 172.16.35.5

D.

BRANCH(config)# ip sla 1
BRANCH(config-ip-sla)# icmp-echo 172.16.35.2

Refer to the exhibit.

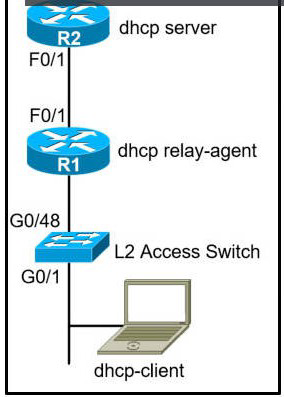

The network administrator can see the DHCP discovery packet in R1. but R2 is not replying to the DHCP request. The R1 related interface is configured with the DHCP helper address. If the PC is directly connected to the FaO/1 interface on R2, the DHCP server assigns as IP address from the DHCP pool to the PC. Which two commands resolve this issue? (Choose two.)

A.

service dhcp-relay command on R1

B.

ip dhcp option 82 command on R2

C.

service dhcp command on R1

D.

ip dhcp relay information enable command on R1

E.

ip dhcp relay information trust-all command on R2

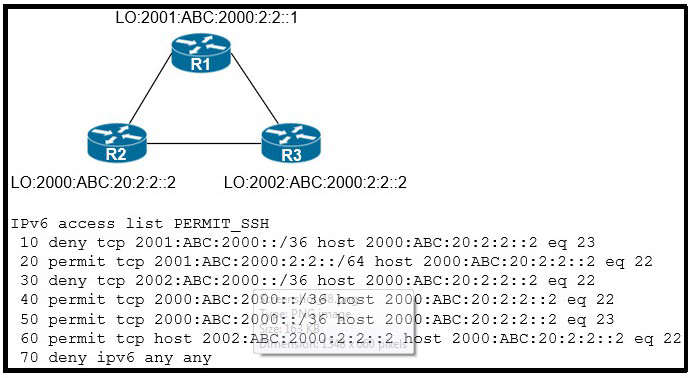

Refer to the exhibit.

An IPv6 network was newly deployed in the environment and the help desk reports that R3 cannot SSH to the R2s Loopback interface. Which action resolves the issue?

A.

Modify line 10 of the access list to permit instead of deny.

B.

Remove line 60 from the access list.

C.

Modify line 30 of the access list to permit instead of deny.

D.

Remove line 70 from the access list.

Refer to the exhibit.

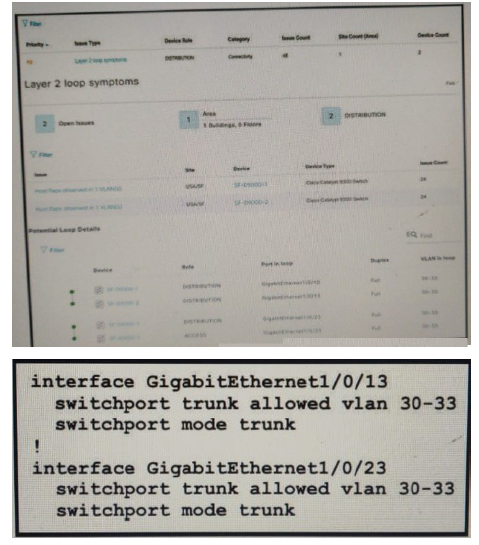

An engineer identifier a Layer 2 loop using DNAC. Which command fixes the problem in the SF-D9300-1 switch?

A.

no spanning-tree uplinkfast

B.

spanning-tree loopguard default

C.

spanning-tree backbonesfast

D.

spanning-tree portfast bpduguard

Refer to the exhibit.

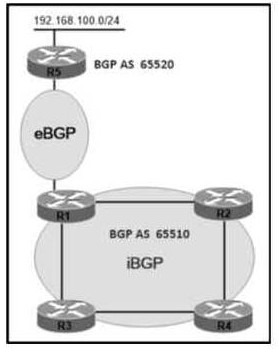

AS65510 iBGP is configured for directly connected neighbors. R4 cannot ping or traceroute network 192 168.100.0/24 Which action resolves this issue?

A.

Configure R4 as a route reflector server and configure R1 as a route reflector client

B.

Configure R1 as a route reflector server and configure R2 and R3 as route reflector clients

C.

Configure R4 as a route reflector server and configure R2 and R3 as route reflector clients.

D.

Configure R1 as a route reflector server and configure R4 as a route reflector client

Refer to the exhibit.

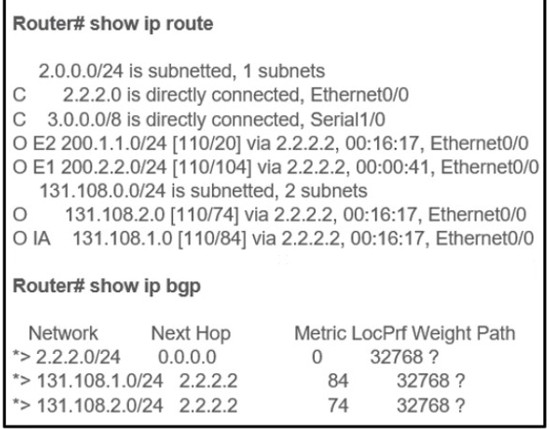

The OSPF routing protocol is redistributed into the BGP routing protocol, but not all the OSPF routes are distributed into BGP Which action resolves the issue?

A.

Include the word external in the redistribute command

B.

Use a route-map command to redistribute OSPF external routes defined in an access list

C.

Include the word internal external in the redistribute command

D.

Use a route-map command to redistribute OSPF external routes defined in a prefix list.

Refer to the exhibit.

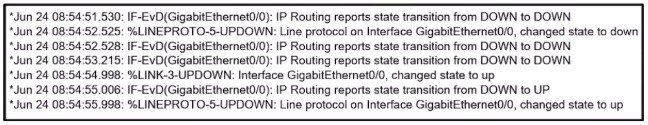

R1 is connected with R2 via GigabitEthernet0/0, and R2 cannot ping R1. What action will fix the issue?

A.

Fix route dampening configured on the router.

B.

Replace the SFP module because it is not supported.

C.

Fix IP Event Dampening configured on the interface.

D.

Correct the IP SLA probe that failed.

Refer to the exhibit.

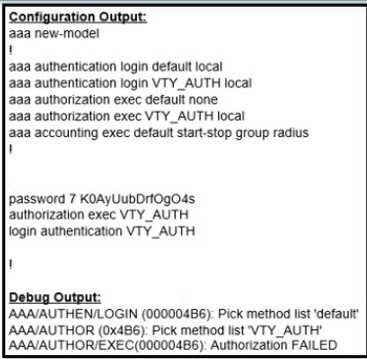

Which action resolves the failed authentication attempt to the router?

A.

Configure aaa authorization login command on line vty 0 4

B.

Configure aaa authorization login command on line console 0

C.

Configure aaa authorization console global command

D.

Configure aaa authorization console command on line vty 0 4

How does an MPLS Layer 3 VPN function?

A.

set of sites use multiprotocol BGP at the customer site for aggregation

B.

multiple customer sites interconnect through service provider network to create secure tunnels between customer edge devices

C.

set of sites interconnect privately over the Internet for security

D.

multiple customer sites interconnect through a service provider network using customer edge to provider edge connectivity

Refer to the exhibit.

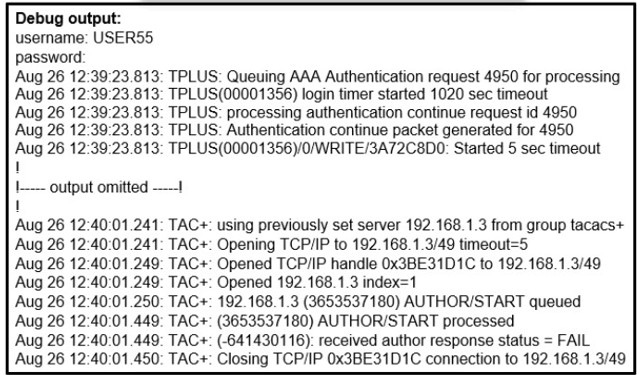

A network administrator logs into the router using TACACS+ username and password credentials, but the administrator cannot run any privileged commands Which action resolves the issue?

A.

Configure TACACS+ synchronization with the Active Directory admin group

B.

Configure the username from a local database

C.

Configure full access for the username from TACACS+ server

D.

Configure an authorized IP address for this user to access this router

What statement about route distinguishes in an MPLS network is true?

A.

Route distinguishes make a unique VPNv4 address across the MPLS network.

B.

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

C.

Route distinguishes are used for label bindings

D.

Route distinguishes define which prefixes are imported and exported on the edge router
