What is the most performant out-of-the-box solution in Anypoint Platform to track
transaction state in an asynchronously executing long-running process implemented as a
Mule application deployed to multiple CloudHub workers?
A.
Redis distributed cache
B.
java.util.WeakHashMap
C.
Persistent Object Store
D.
File-based storage
Persistent Object Store
Explanation: Correct Answer: Persistent Object Store
*****************************************
>> Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint
Platform
>> File-storage is neither performant nor out-of-the-box solution in Anypoint Platform
>> java.util.WeakHashMap needs a completely custom implementation of cache from
scratch using Java code and is limited to the JVM where it is running. Which means the
state in the cache is not worker aware when running on multiple workers. This type of
cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among
multiple workers on cloudhub. https://www.baeldung.com/java-weakhashmap
>> Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform
which is performant as well as worker aware among multiple workers running on
CloudHub. https://docs.mulesoft.com/object-store/
So, Persistent Object Store is the right answer.
What is the main change to the IT operating model that MuleSoft recommends to
organizations to improve innovation and clock speed?
A.
Drive consumption as much as production of assets; this enables developers to discover
and reuse assets from other projects and encourages standardization
B.
Expose assets using a Master Data Management (MDM) system; this standardizes
projects and enables developers to quickly discover and reuse assets from other projects
C.
Implement SOA for reusable APIs to focus on production over consumption; this
standardizes on XML and WSDL formats to speed up decision making
D.
Create a lean and agile organization that makes many small decisions everyday; this
speeds up decision making and enables each line of business to take ownership of its
projects
Drive consumption as much as production of assets; this enables developers to discover
and reuse assets from other projects and encourages standardization
Explanation: Explanation
Correct Answer: Drive consumption as much as production of assets; this enables
developers to discover and reuse assets from other projects and encourages
standardization
*****************************************
>> The main motto of the new IT Operating Model that MuleSoft recommends and made
popular is to change the way that they are delivered from a production model to a
production + consumption model, which is done through an API strategy called API-led
connectivity.
>> The assets built should also be discoverable and self-serveable for reusablity across
LOBs and organization.
>> MuleSoft's IT operating model does not talk about SDLC model (Agile/ Lean etc) or
MDM at all. So, options suggesting these are not valid.
References:
https://blogs.mulesoft.com/biz/connectivity/what-is-a-center-for-enablement-c4e/
https://www.mulesoft.com/resources/api/secret-to-managing-it-projects
Once an API Implementation is ready and the API is registered on API Manager, who should request the access to the API on Anypoint Exchange?
A.
None
B.
Both
C.
API Client
D.
API Consumer
API Consumer
Explanation: Explanation
Correct Answer: API Consumer
*****************************************
>> API clients are piece of code or programs that use the client credentials of API
consumer but does not directly interact with Anypoint Exchange to get the access
>> API consumer is the one who should get registered and request access to API and then
API client needs to use those client credentials to hit the APIs
So, API consumer is the one who needs to request access on the API from Anypoint
Exchange

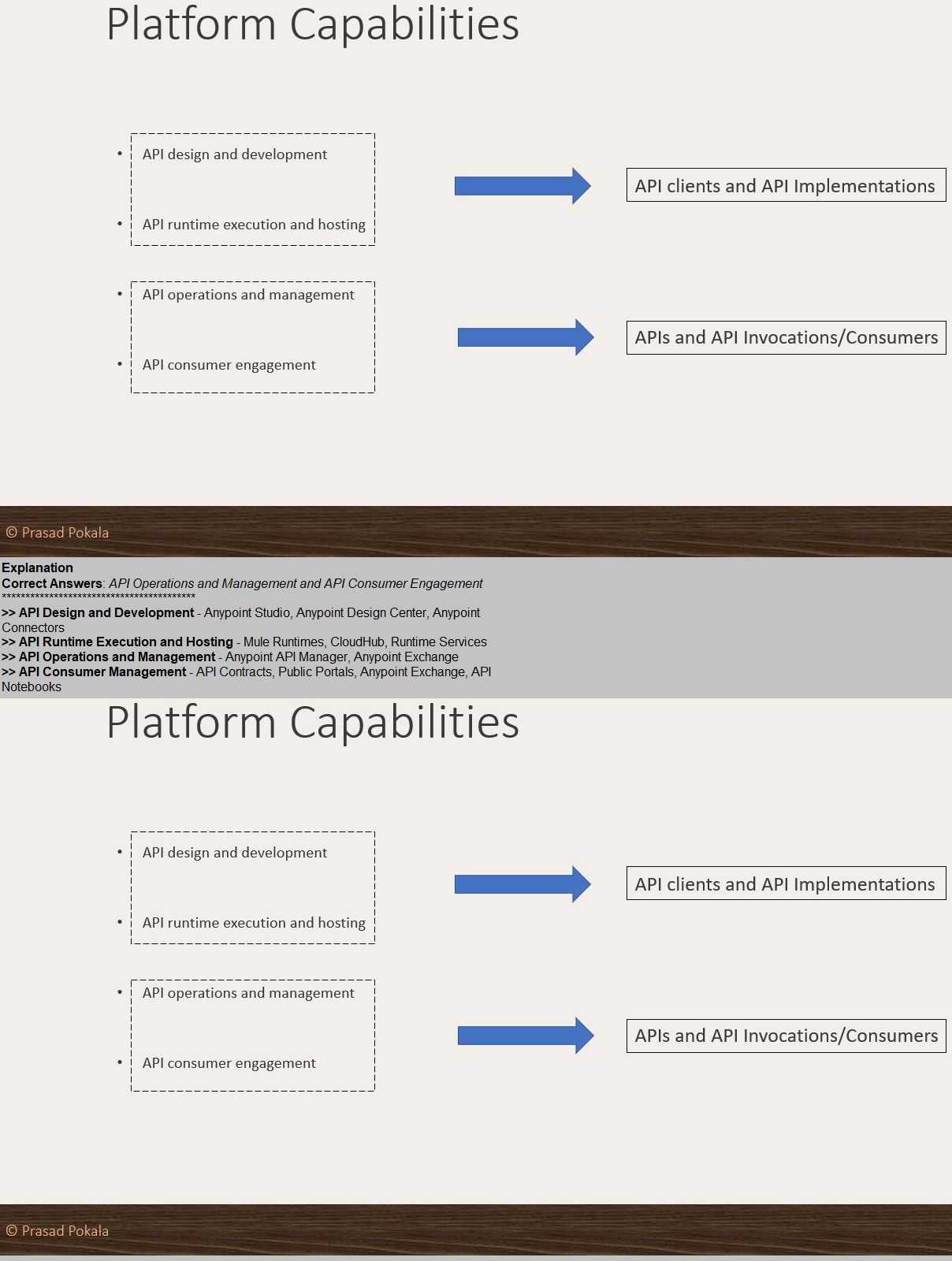

What Anypoint Platform Capabilities listed below fall under APIs and API
Invocations/Consumers category? Select TWO.
A.
API Operations and Management
B.
API Runtime Execution and Hosting
C.
API Consumer Engagement
D.
API Design and Development
API Design and Development
Explanation: Explanation
Correct Answers: API Design and Development and API Runtime Execution and Hosting
*****************************************
>> API Design and Development - Anypoint Studio, Anypoint Design Center, Anypoint
Connectors
>> API Runtime Execution and Hosting - Mule Runtimes, CloudHub, Runtime Services
>> API Operations and Management - Anypoint API Manager, Anypoint Exchange
>> API Consumer Management - API Contracts, Public Portals, Anypoint Exchange, API
Notebooks
In which layer of API-led connectivity, does the business logic orchestration reside?
A.
System Layer
B.
Experience Layer
C.
Process Layer
Process Layer
Explanation: Explanation
Correct Answer: Process Layer
*****************************************
>> Experience layer is dedicated for enrichment of end user experience. This layer is to
meet the needs of different API clients/ consumers.
>> System layer is dedicated to APIs which are modular in nature and implement/ expose
various individual functionalities of backend systems
>> Process layer is the place where simple or complex business orchestration logic is
written by invoking one or many System layer modular APIs
So, Process Layer is the right answer.
Traffic is routed through an API proxy to an API implementation. The API proxy is managed
by API Manager and the API implementation is deployed to a CloudHub VPC using
Runtime Manager. API policies have been applied to this API. In this deployment scenario,
at what point are the API policies enforced on incoming API client requests?
A.
At the API proxy
B.
At the API implementation
C.
At both the API proxy and the API implementation
D.
At a MuleSoft-hosted load balancer
At the API proxy
Explanation: Explanation
Correct Answer: At the API proxy
*****************************************
>> API Policies can be enforced at two places in Mule platform.
>> One - As an Embedded Policy enforcement in the same Mule Runtime where API
implementation is running.
>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is
running.
>> As the deployment scenario in the question has API Proxy involved, the policies will be
enforced at the API Proxy.
An API client calls one method from an existing API implementation. The API
implementation is later updated. What change to the API implementation would require the API client's invocation logic to also be updated?
A.
When the data type of the response is changed for the method called by the API client
B.
When a new method is added to the resource used by the API client
C.
When a new required field is added to the method called by the API client
D.
When a child method is added to the method called by the API client
When a new required field is added to the method called by the API client
Explanation: Explanation
Correct Answer: When a new required field is added to the method called by the API client
*****************************************
>> Generally, the logic on API clients need to be updated when the API contract breaks.
>> When a new method or a child method is added to an API , the API client does not
break as it can still continue to use its existing method. So these two options are out.
>> We are left for two more where "datatype of the response if changed" and "a new
required field is added".
>> Changing the datatype of the response does break the API contract. However, the
question is insisting on the "invocation" logic and not about the response handling logic.
The API client can still invoke the API successfully and receive the response but the
response will have a different datatype for some field.
>> Adding a new required field will break the API's invocation contract. When adding a new
required field, the API contract breaks the RAML or API spec agreement that the API
client/API consumer and API provider has between them. So this requires the API client
invocation logic to also be updated.
What should be ensured before sharing an API through a public Anypoint Exchange portal?
A.
The visibility level of the API instances of that API that need to be publicly accessible should be set to public visibility
B.
The users needing access to the API should be added to the appropriate role in
Anypoint Platform
C.
The API should be functional with at least an initial implementation deployed and accessible for users to interact with
D.
The API should be secured using one of the supported authentication/authorization mechanisms to ensure that data is not compromised
The visibility level of the API instances of that API that need to be publicly accessible should be set to public visibility
Explanation: Explanation
Refer to the exhibit.
what is true when using customer-hosted Mule runtimes with the MuleSoft-hosted Anypoint Platform control plane (hybrid deployment)?
A.
Anypoint Runtime Manager initiates a network connection to a Mule runtime in order to deploy Mule applications
B.
The MuleSoft-hosted Shared Load Balancer can be used to load balance API
invocations to the Mule runtimes
C.
API implementations can run successfully in customer-hosted Mule runtimes, even when they are unable to communicate with the control plane
D.
Anypoint Runtime Manager automatically ensures HA in the control plane by creating a new Mule runtime instance in case of a node failure
API implementations can run successfully in customer-hosted Mule runtimes, even when they are unable to communicate with the control plane

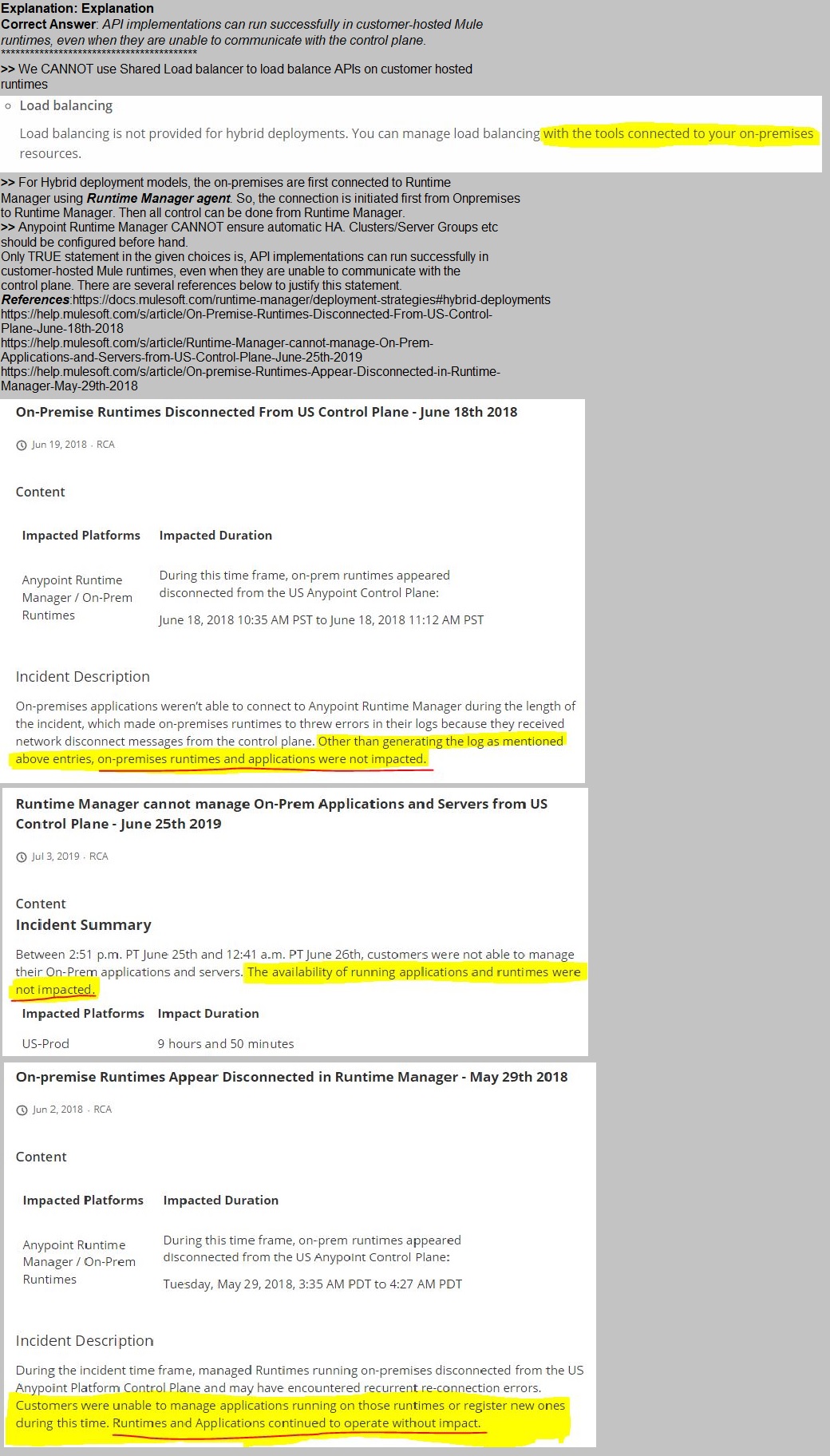

Explanation: Explanation
Correct Answer: API implementations can run successfully in customer-hosted Mule
runtimes, even when they are unable to communicate with the control plane.
*****************************************
>> We CANNOT use Shared Load balancer to load balance APIs on customer hosted
runtimes
What is true about where an API policy is defined in Anypoint Platform and how it is then applied to API instances?
A.
The API policy Is defined In Runtime Manager as part of the API deployment to a Mule
runtime, and then ONLY applied to the specific API Instance
B.
The API policy Is defined In API Manager for a specific API Instance, and then ONLY
applied to the specific API instance
C.
The API policy Is defined in API Manager and then automatically applied to ALL API instances
D.
The API policy is defined in API Manager, and then applied to ALL API instances in the
specified environment
The API policy Is defined In API Manager for a specific API Instance, and then ONLY
applied to the specific API instance
Explanation: Explanation
Correct Answer: The API policy is defined in API Manager for a specific API instance, and
then ONLY applied to the specific API instance.
*****************************************
>> Once our API specifications are ready and published to Exchange, we need to visit API
Manager and register an API instance for each API.
>> API Manager is the place where management of API aspects takes place like
addressing NFRs by enforcing policies on them.
>> We can create multiple instances for a same API and manage them differently for
different purposes.
>> One instance can have a set of API policies applied and another instance of same API
can have different set of policies applied for some other purpose.
>> These APIs and their instances are defined PER environment basis. So, one need to
manage them seperately in each environment.
>> We can ensure that same configuration of API instances (SLAs, Policies etc..) gets
promoted when promoting to higher environments using platform feature. But this is
optional only. Still one can change them per environment basis if they have to.
>> Runtime Manager is the place to manage API Implementations and their Mule Runtimes
but NOT APIs itself. Though API policies gets executed in Mule Runtimes, We CANNOT
enforce API policies in Runtime Manager. We would need to do that via API Manager only
for a cherry picked instance in an environment.
So, based on these facts, right statement in the given choices is - "The API policy is
defined in API Manager for a specific API instance, and then ONLY applied to the specific
API instance".
Reference: https://docs.mulesoft.com/api-manager/2.x/latest-overview-concept
What Anypoint Connectors support transactions?
A.
Database, JMS, VM
B.
Database, 3MS, HTTP
C.
Database, JMS, VM, SFTP
D.
Database, VM, File
Database, JMS, VM
A System API is designed to retrieve data from a backend system that has scalability challenges. What API policy can best safeguard the backend system?
A.
IPwhitelist
B.
SLA-based rate limiting
C.
Auth 2 token enforcement
D.
Client ID enforcement
SLA-based rate limiting
Explanation: Explanation
Correct Answer: SLA-based rate limiting
*****************************************
>> Client Id enforement policy is a "Compliance" related NFR and does not help in
maintaining the "Quality of Service (QoS)". It CANNOT and NOT meant for protecting the
backend systems from scalability challenges.
>> IP Whitelisting and OAuth 2.0 token enforcement are "Security" related NFRs and again
does not help in maintaining the "Quality of Service (QoS)". They CANNOT and are NOT
meant for protecting the backend systems from scalability challenges.
Rate Limiting, Rate Limiting-SLA, Throttling, Spike Control are the policies that are "Quality
of Service (QOS)" related NFRs and are meant to help in protecting the backend systems
from getting overloaded.
https://dzone.com/articles/how-to-secure-apis
| Page 5 out of 13 Pages |
| Previous |
