Free 350-501 Practice Test Questions 2026

Refer to the exhibit

Which statement describes this configuration?

A.

Router 1 has its running configuration locked so changes can be made only when the administrator issues a kill session

B.

Router 1 can be remotely managed by the CLI using Telnet

C.

Router 1 has a new data store to collect SNMP information, but configuration must still
be done at the CLI only

D.

Router 1 has a temporary data store where a copy of the running configuration can be
manipulated and verified before committing the configuration

Drag and drop the OSPF and IS-IS Cisco MPLS TE extensions from the left to their
functional descriptions on the right

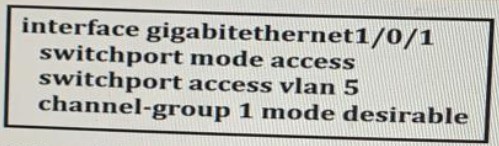

Refer to the exhibit:

An engineer is preparing to implement link aggregation configuration.
Which statement al about this configuration is true?

A.

The switch port actively sends packets to negotiate an EtherChannel using PAgP

B.

The switch port accepts LACP and PAgP packets from a connected peer and negotiate
an EtherChannel using the common EtherChannel mode.

C.

The switch port passively negotiates an EtherChannel if it receives PAgP packets from a
connected peer

D.

The switch port negotiates an EtherChannel if it receives LACP packets from a
connected peer

You are creating new Cisco MPLS TE tunnels. Which type of RSVP message does the
headend router send to reserve bandwidth on the path to the tunnel’s router?

A.

error

B.

reservation

C.

path

D.

tear

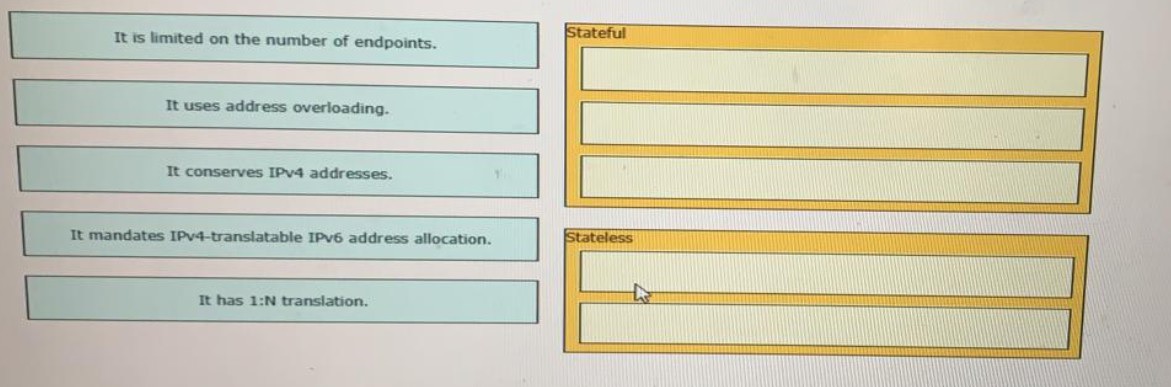

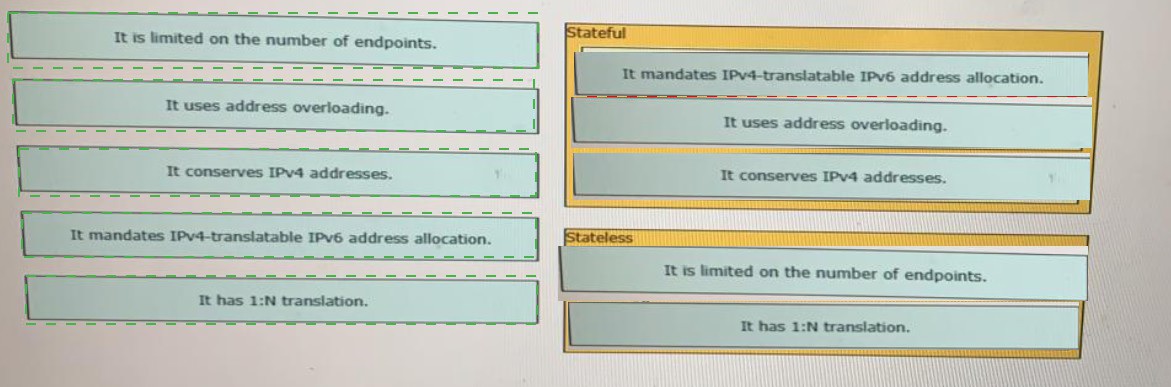

Drag and drop the NAT64 descriptions from the left onto the correct NAT64 types on the
right.

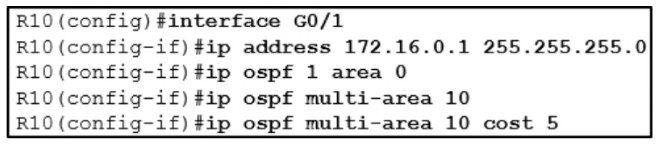

Refer to the exhibit

A network engineer is implementing OSPF multiarea. Which command on interface GO/1
resolves adjacency issues in the new area?

A.

ip ospf network broadcast

B.

ip ospf network point-to-point

C.

ip ospf network non-broadcast

D.

ip ospf network point-to-multipoint

Refer to the exhibit:

With which router does IOSXRV-1 have LDP session protection capability enabled but
session hold up is not active?

A.

192.168.0.1

B.

192.168.0.3

C.

192.168.0.4

D.

192.168.0.5

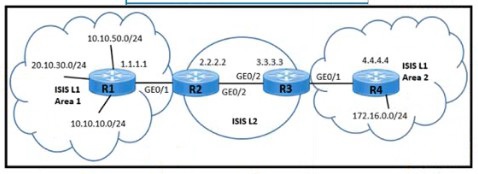

Refer to the exhibit.

A network engineer must meet these requirements to provide a connects, solution:
The customer connected to Area 2 needs to access the application in Area 1 on
the 10.10.10.0/24 subnet The Customer must not have access to the 20.10 30.0/24 subnet. The service provider must make sure that the Area 2 routing database limits the number of IP addresses in the routing table Which two configurations must be implemented to meet the requirements? (Choose two)

A.

Set a tag value of 200 to match the summary address 10.0.0/16 on R2.

B.

Set a tag value of 200 to match the summary address 10.0.0.0/16 on R3.

C.

Apply the route map for tag 200 and leak Level 2 routes into Level 1 Area 2 on R3

D.

Apply the route map for tag 200 and teak Level 2 routes into Level 1 Area 2 on R4.

E.

Set a tag value of 200 to match the summary address 10.0.0./16 on R1.

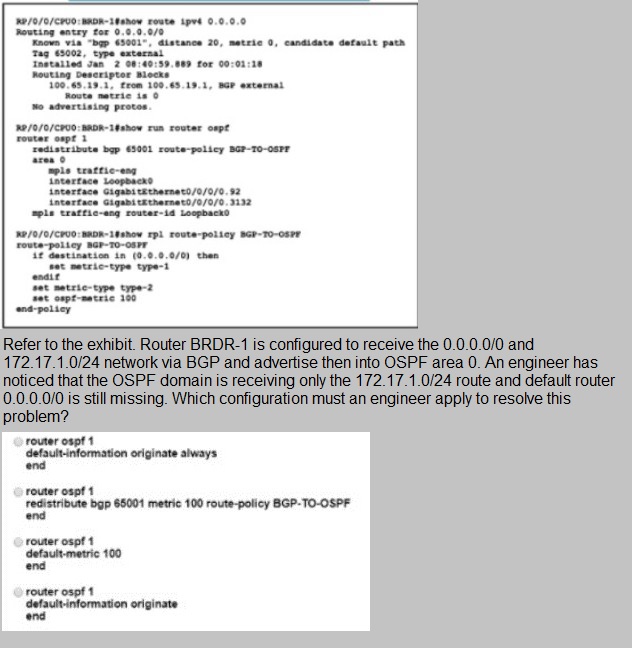

Refer to the exhibit.

A.

Option A

B.

Option B

C.

Option C

D.

Option D

What is a characteristic of prefix segment identifier?

A.

It contains a router to a neighbor

B.

It contains the interface address of the device per each link

C.

It is globally unique.

D.

It is locally unique.

A.

Option A

B.

Option B

C.

Option C

D.

Option D

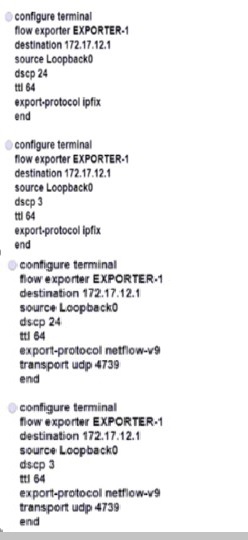

A network engineer must configure a router for Flexible NetFlow IPFIX export. The IP address of the destination server is 172.17.12.1 The source address must be set to the Loopback0 IPv4 address and exported packets must be set to DSCP CS3. The TTL must be 64 and the transport protocol must be set to UDP with destination port 4739. Which configuration must the engineer apply to the router?

A.

Option A

B.

Option B

C.

Option C

D.

Option D
