In the context of VMM, which protocol between ACI leaf and compute hosts ensures that
the policies are pushed to the leaf switches for immediate and on demand resolution
immediacy?

A.

VXLAN

B.

LLDP

C.

 ISIS

An engineer is implementing a Cisco ACI data center network that includes Cisco Nexus 2000 Series 10G fabric extenders. Which physical topology is supported?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

An engineer must limit management access to me Cisco ACI fabric that originates from a single subnet where the NOC operates. Access should be limited to SSH and HTTPS only. Where should the policy be configured on the Cisco APIC to meet the requirements?

A.

policy In the management tenant

B.

policy on the management VLAN

C.

ACL on the management interface of the APIC

D.

ACL on the console interface

Which two dynamic routing protocols are supported when using Cisco ACI to connect to an
external Layer 3 network? (Choose two.)

A.

iBGP

B.

VXLAN

C.

IS-IS

D.

RIPv2

E.

eBGP

An engineer must configure a group of servers with a contract that uses TCP port 80. The EGP that contains the web servers requires an external Layer 3 cloud to initiate communication. Which action must be taken to meet these requirements?

A. Configure the EGP as a provider and L3 out as consumer of the contract.

B. Configure OSPF to exchange routes between the L3 out and EGP.

C. Configure a taboo contract and apply it to the EPG.

D. Configure the EPG as a consumer and L3 out as a provider of the contract.

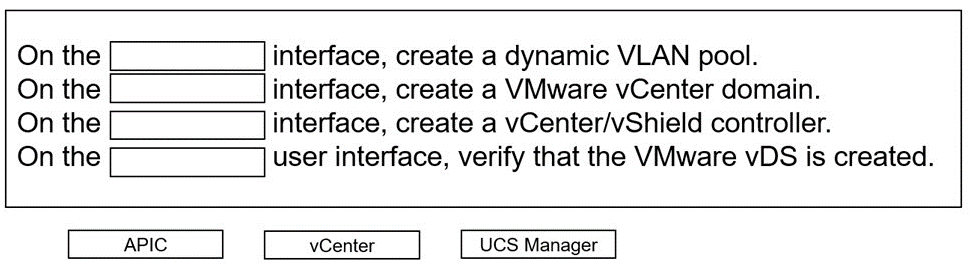

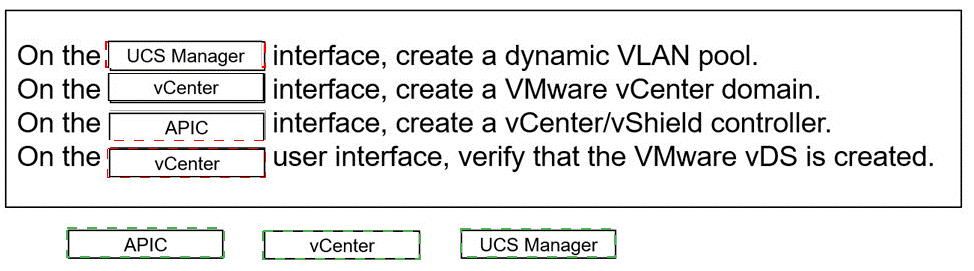

An engineer must configure VMM domain integration on a Cisco UCS B-Series server that is connected to a Cisco ACI fabric. Drag and drop the products used to create VMM domain from the bottom into the sequence in which they should be implemented at the top. Products are used more than once.

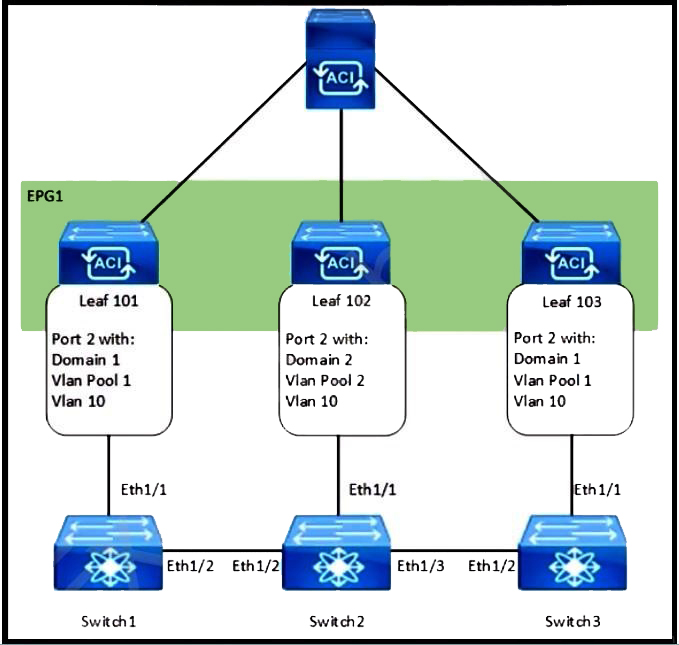

Refer to the exhibit. How are the STP BPDUs forwarded over Cisco ACI fabric?

A. Cisco ACI acts as the STP root for all three external switches.

B. STP BPDUs that are generated by Switch2 are received by Switch1 and Switch3

C. STP BPDUs that are generated by Switch1 are received only by Switch3.

D. Cisco ACI fabric drops all STP BPDUs that are generated by the external switches.

An engineer is in the process of discovering a new Cisco ACI fabric consisting of two spines and four leaf switches. The discovery of leaf 1 has just been completed. Which two nodes are expected to be discovered next? (Choose two.)

A. spine 1

B. leaf 4

C. spine 2

D. leaf 3

E. leaf 2

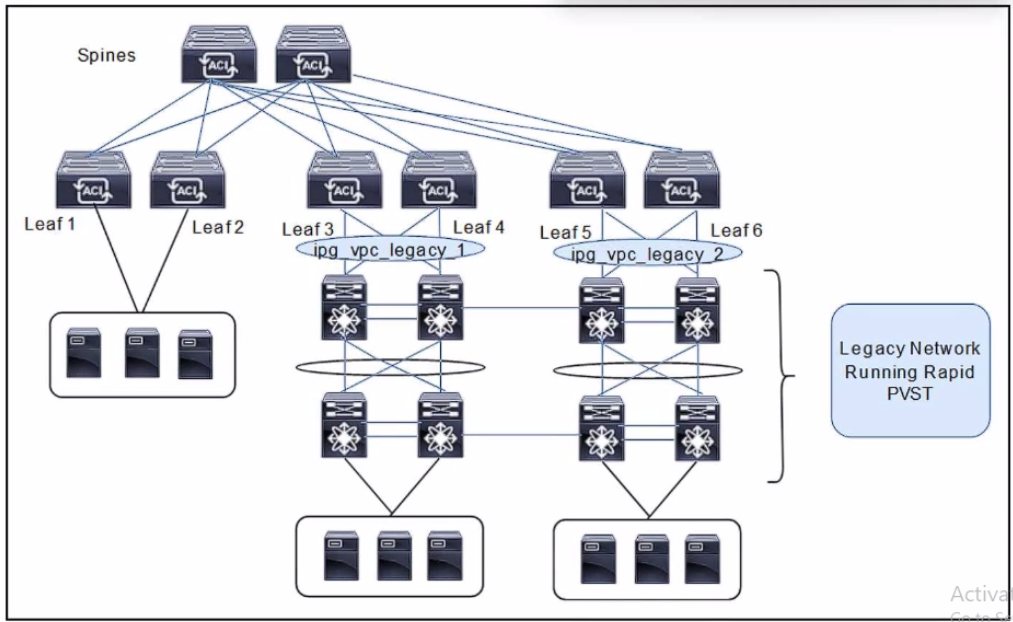

Refer to the exhibit. A client is configuring a new Cisco ACI fabric. All VLANs will be extended during the migration phase using the VPC connections on leaf switches 3. 4 and leaf switches toward the legacy network. The migration phase has these requirements;

* If The legacy switches must be able to transfer BPDUs through the ACI fabric.

* If the legacy switches fail to break a loop. Cisco ACI must break the loop.

Which group settings must be configured on VPC interface policy groups ipg_vpc-legacy_1 and ipg_vpc-legacy_2 to meet these requirements?

A. MCP: enabled
BPDU Guard: enabled
BPDU Filter: disabled

B. MCP: enabled
BPDU Guard: disabled
BPDU Filter: disabled

C. MCP: disabled
BPDU Guard: disabled
BPDU Filter: enabled

D. MCP: disabled
BPDU Guard: enabled
BPDU Filter enable

An ACI engineer is implementing a Layer 3 out inside the Cisco ACI fabric that must meet these requirements:

The data center core switch must be connected to one of the leaf switches with a single 1G link.

The routes must be exchanged using a link-state routing protocol that supports hierarchical network design.

The data center core switch interface must be using 802.1Q tagging, and each vlan will be configured with a dedicated IP address.

Which set of steps accomplishes these goals?

A. Set up the ElGRP Protocol policy with the selected Autonomous System number. Set up the Routed External Network object ana Node Profile, selecting ElGRP Create the Switch profile, selecting Port-channel and the appropriate interfaces Create the default network and associate it with the Routed Outside object.

B. Set up the BGP Protocol policy with the Autonomous System number of 0.
Configure an interface policy and an External Bridged Domain.
Create an External Bridged Network using the configured VLAN pool.
Build the Leaf profile, selecting Routed sub-interface and the appropriate VLAN.

C. Configure the OSPF Protocol policy with an area of 0.
Create Routed Outside object and Node Profile, selecting OSPF as the routing protocol.
Build the Interface profile, selecting Routed Sub-interface and the appropriate VLAN.
Configure the External Network object with a network of 0.0.0.0/0.

D. Set up the ElGRP Protocol policy with the selected Autonomous System number. Create the Routed Outside object and Node Profile selecting ElGRP Configure the Interface profile selecting Routed Interface and the appropriate interfaces. Create the External Network object with a network of 0.0.0.0/0.

Cisco ACI fabric must detect all silent endpoints for the Layer 3 bridge domain. Which actions accomplish this goal?

A. Disable Unicast Routing.

Enable L2 Unknown Unicast Hardware Proxy.

B. Disable Unicast Routing.

Enable L2 Unknown Unicast Flood.

C. Enable Unicast Routing. Disable ARP Flooding.

D. Enable Unicast Routing. Enable ARP Flooding.

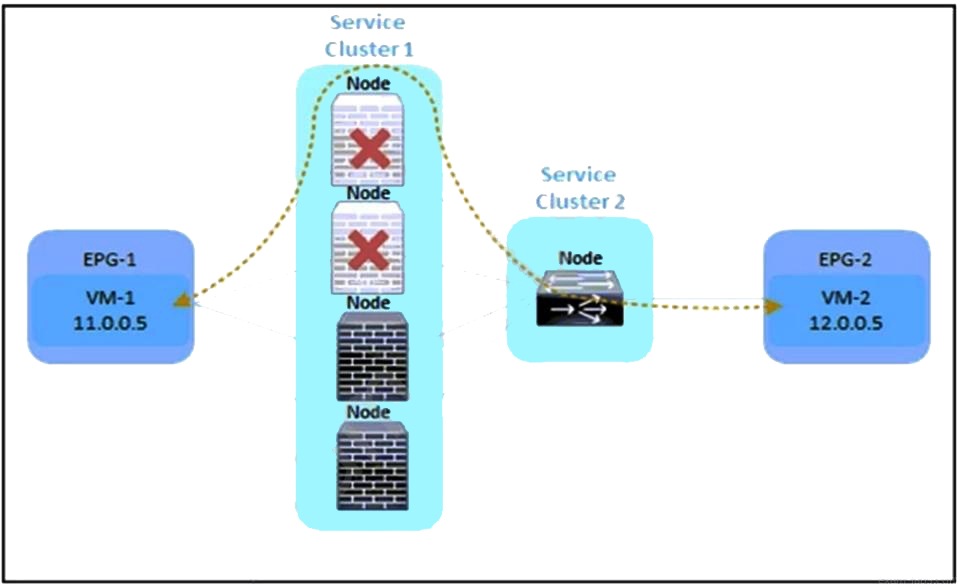

Refer to the exhibit. An engineer must divert the traffic between VM-1 and VM-2 by using a Multi-Node service graph. The solution should prevent an insufficient number of available Layer 4 to Layer 7 devices in the first cluster. Which configuration set accomplishes this goal?

A. PBR node tracking
tracking threshold with action bypass
symmetric PBR
resilient hashing

B. PBR node tracking
tracking threshold with action permit
unidirectional PBR
resilient hashing

C. PBR node tracking
tracking threshold with action permit
symmetric PBR
resilient hashing

D. PBR node tracking
tracking threshold with action deny
symmetric PBR
unidirectional PBR
