An architect must develop a campus network solution that includes:
logically segmented and isolated networks
ability to communicate between network segments when required
support for overlapping IP addresses
widely available technologies to avoid purchasing specialized equipment
Which solution must the architect select?

A.

VSS with IGP

B.

802.1Q with HSRP

C.

vPC with HSRP

D.

VRF-Lite with OSPF

When designing interdomain multicast, which two protocols are deployed to achieve communication between multicast sources and receivers? (Choose two.)

A.

A. IGMPv2

B.

BIDIR-PIM

C.

MP-BGP

D.

MSDP

E.

MLD

A branch office has a primary L3VPN MPLS connection back to the main office and an
IPSEC VPN tunnel that serves as backup. Which design ensures that data is sent over the
backup connection only if the primary MPLS circuit is down?

A.

Use EIGRP to establish a neighbor relationship with the main office via

B.

L3VPN MPLS and the IPSEC VPN tunnel.

C.

Use BGP with the multipath feature enabled to force traffic via the primary path when
available.

D.

Use static routes tied to an IP SLA to prefer the primary path while a floating static route
points to the backup connection.

E.

Use OSPF with a passive-interface command on the backup connection

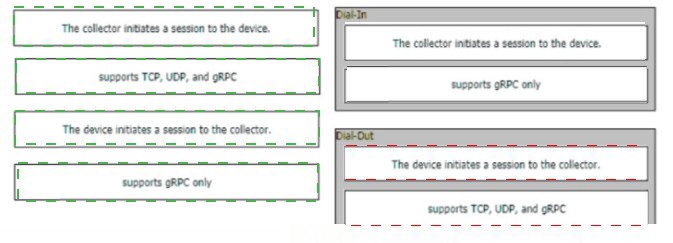

Drag and drop the characteristics from the left onto the telemetry mode they apply to on the right.

Refer to the exhibit. All routers currently reside in OSPF area 0. The network manager
recently used R1 and R2 as aggregation routers for remote branch locations and R3 and
R4 for aggregation routers for remote office locations. The network has since been
suffering from outages, which are causing frequent SPF runs. To enhance stability and
introduce areas to the OSPF network with the minimal number of ABRs possible, which two
solutions should the network manager recommend? (Choose two.)

A.

a new OSPF area for R1 and R2 connections,with R1 and R2as ABRs

B.

a new OSPF area for R3 and R4 connections,with R5 and R6as ABRs

C.

a new OSPF area for R3 and R4 connections,with R3 and R4as ABRs

D.

a new OSPF area for R1, R2, R3, and R4 connections, with R1, R2, R3, and R4 as ABRs

E.

a new OSPF area for R1 and R2 connections, with R5 and R6 as ABRs

An existing network solution is using BFD in echo mode. Several of the network devices
are experiencing high CPU utilization which an engineer has determined is related to the
BFD feature. Which solution should the engineer leverage to reduce the CPU load?

A.

Implement slow timers between peers with low CPU resources.

B.

Implement BED asynchronous mode between peers with low CPU resources.

C.

Enable BFD multi-hop on the devices with low CPU resources.

D.

Utilize carrier delay on all routers in the network.

At which layer does Cisco Express Forwarding use adjacency tables to populate
addressing information?

A.

Layer4

B.

Layer 2

C.

Layer 1

D.

Layer 3

Drag and drop the description from the left onto the corresponding WAN connectivity types and categories on the right.

What is an advantage of designing an out-of-band network management solution?

A.

In the event of a production network outage, network devices can still be
managed.

B.

There is no separation between the production network and the management
network.

C.

In the event of a production network outage, it can be used as a backup network
path.

D.

It is less expensive than an in-band management solution

An engineer must design a QoS solution for a customer that is connected to an ISP over a
1Gbps link with a 100Mbps CIR. The ISP aggressively drops all traffic received over which
is causing numerous TCP retransmissions. The customer is not using any RTP
applications but wants to maximize bandwidth usage up to the CIR. Which QoS solution
engineer choose?

A.

Policing

B.

Traffic shaping

C.

Policer with markdown

D.

Queuing

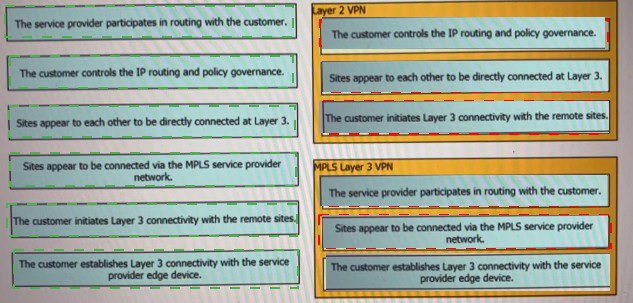

Drag and drop the descriptions from the left onto the corresponding VPN types on the rights.

Refer to the exhibit. The distribution switches serve as the layer 3 boundary. HSRP
preemption is enabled. When the primary switch comes back after a failure, traffic is initially
dropped. Which solution must be implemented to improve the design?

A.

Increase the hello timers on both HSRP devices

B.

Use the preempt delay feature on the primary HSRP device.

C.

Use the preempt delay feature on the backup HSRP device

D.

Configure a higher mac-refresh interval on both HSRP devices
