How is an event monitored and reported for an individual device in the overlay network at site ID:S4300T6E43F36?

A.

The device sends event notifications to vManage.

B.

The device sends notifications to vSmart that sends them to vManage.

C.

The device sends a critical alarm of events to vManage.

D.

The device sends a critical alarm to vSmart that sends it to vManage.

Which storage format Is used when vManage Is deployed as a virtual machine on a KVM hypervisor?

A.

.iso

B.

.qcow2

C.

.ova

D.

.tgz

A customer must upgrade the cisco SD-WAN devices and controllers from version 19.2 to version 20.3. The devices include WAN Edge cloud, vManage, vSmart, and vBond. Which types of image types of image files are needed for this upgrade?

A.

one file for vManage and one file for all other devices with extension tar.gz

B.

one file for vManage, one for vSmart and one for vBond + WAN Edge Cloud with
extension.bin

C.

one file for vManaga, one for vSmart and one for vBond + WAN Edge Cloud with
extension tar.gz

D.

one file for vManaga and one file for all other devices with extension .bin

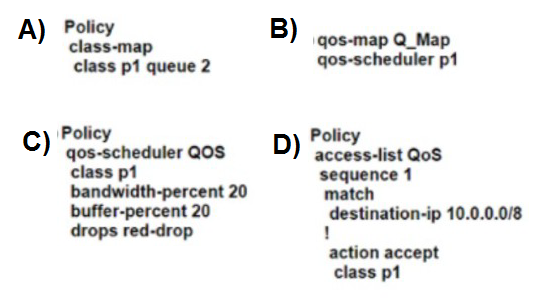

Which policy configuration must be used to classify traffic as it enters the branch WAN Edge router to be put into the desired output queue?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

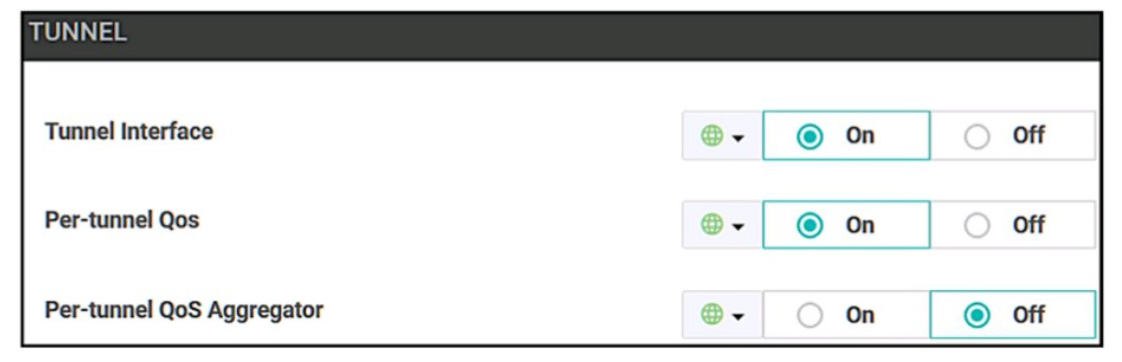

Refer to the exhibit A user has selected the options while configuring a VPN Interface Ethernet feature template What is the required configuration parameter the user must set in this template for this feature to function?

A.

The "IP MTU" field must be increased from the default value of 1500 to support the additional overhead.

B.

The "Shaping Rate (Kbps)" field must be configured with a value

C.

The "Adaptive QoS" field must be set to "on"

D.

The "Bandwidth Downstream" field must be configured with a value

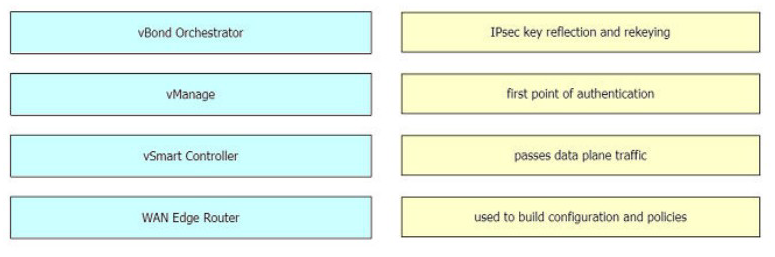

Drag and drop the Cisco SD-WAN components from the left onto their functions on the right.

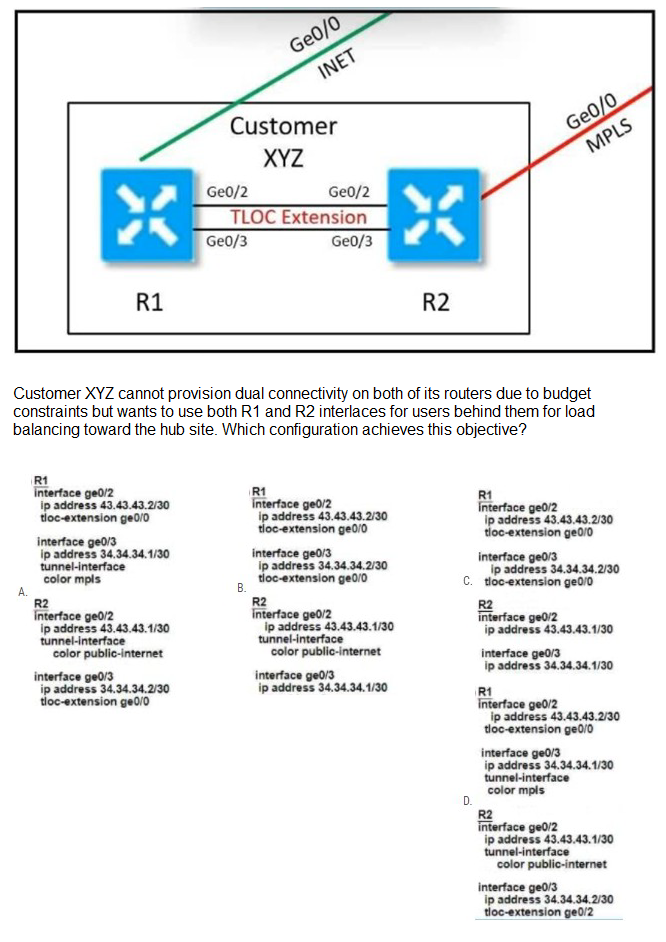

Refer to the exhibit.

A.

Option A

B.

Option B

C.

Option C

D.

Option D

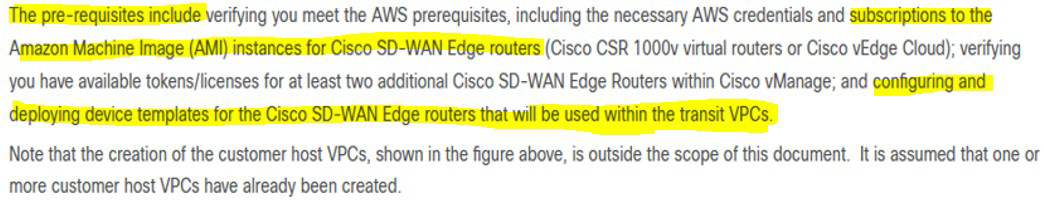

Which two prerequisites must be met before the Cloud onRamp for laaS is initiated on vManage to expand to the AWS cloud? (Choose two)

A.

Attach the *AmazonCreateVPC* and "Amazon Provision EC2" permission policy to the IAM account

B.

Subscribe to the SD-WAN Edge router AMI in the AWS account

C.

Attach an OSPF feature template to the AWS cloud Edge router template

D.

Attach a device template to the cloud WAN Edge router to be deployed in the AWS

E.

Preprovision the transit VPC in the AWS region

What are two attributes of vRoute? (Choose two)

A.

originator

B.

service

C.

encapsulation

D.

carrier

E.

domain ID

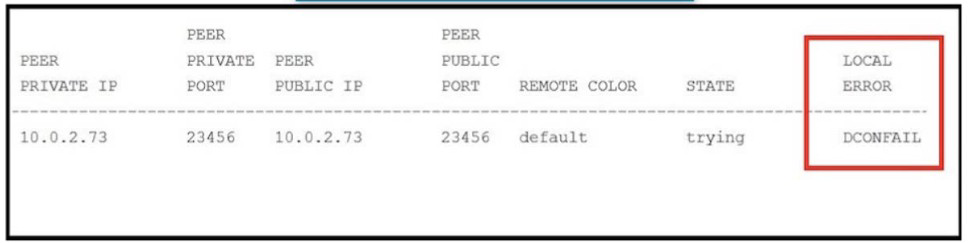

Refer to the exhibit Cisco SD-WAN is deployed with controllers hosted in a data center All branches have WAN Edge devices with dual connections to the data center one via Internet and the other using MPLS Three branches out of 20 have issues with their control connections on MPLS circuit The local error refers to Control Connection Failure Which action resolves the issue*?

A.

Rectify any issues with the underlay routing configuration

B.

Match the TLOC color on the controllers and all WAN Edge devices

C.

Match certificates for the DTLS connection and Root CA must be installed first on WAN Edge devices

D.

Update the system IP on vManage and then resend it to the controllers

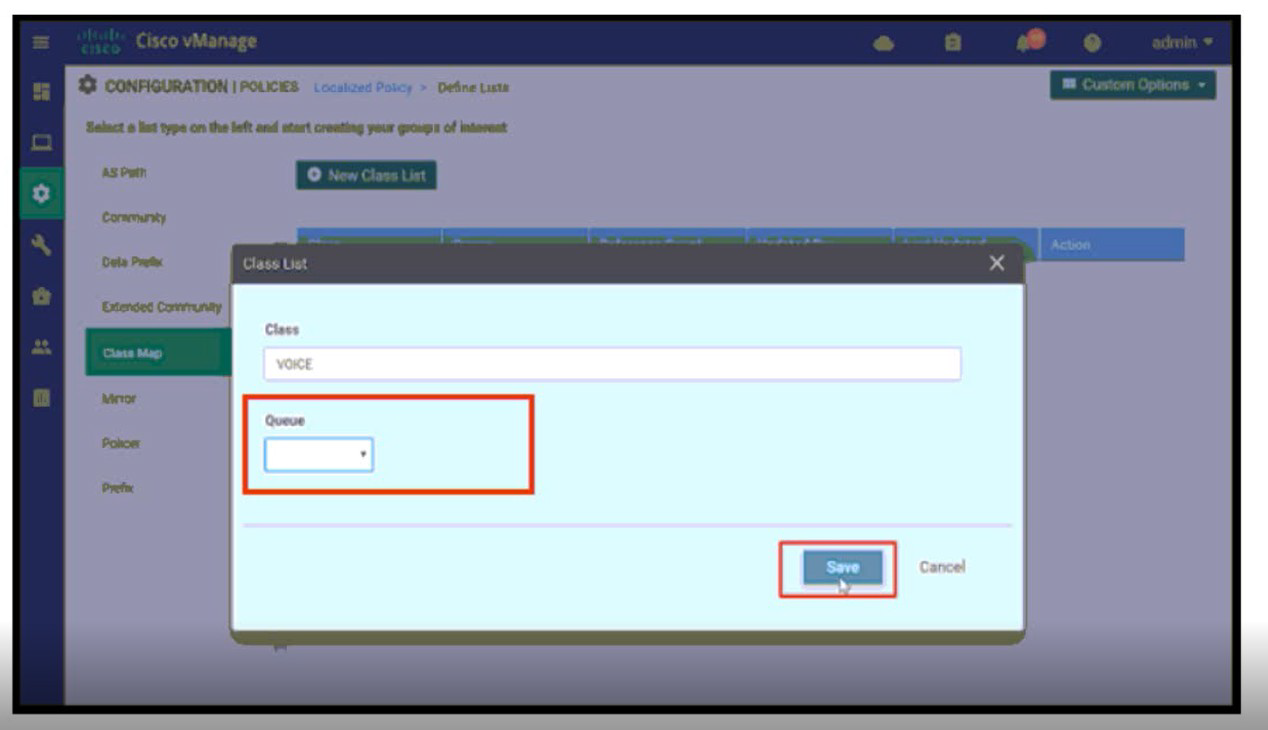

Refer to the exhibit. A network administrator is setting the queueing value for voice traffic for one of the WAN Edge routers using vManager GUI. Which queue value must be set to accomplish this task?

A.

0

B.

1

C.

2

D.

3

How is lhe software managed in Cisco SD-WAN?

A.

Software upgrade operation in the group must include vManage. vBond. and vSmart.

B.

Software downgrades are unsupported for vManage

C.

Software images must be uploaded to vManage through HTTP or FTP.

D.

Software images must be transferred through VPN 512 or VPN 0 of vManage.
