Which IPv6 address range is suitable for anycast addresses for distributed services such DHCP or DNS?

A. FF00:1/12

B. 2001:db8:0234:ca3e::1/128

C. 2002:db84:3f37:ca98:be05:8/64

D. FE80::1/10

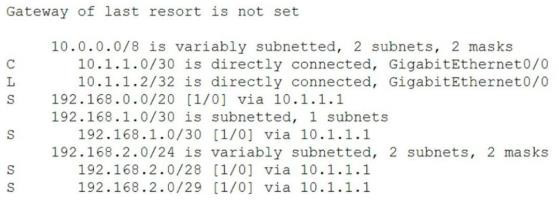

Refer to the exhibit.

An engineer is checking the routing table in the main router to identify the path to a server on the network. Which route does the router use to reach the server at 192.168.2.2?

A. S 192.168.0.0/20 [1/0] via 10.1.1.1

B. S 192.168.2.0/29 [1/0] via 10.1.1.1

C. S 192.168.2.0/28 [1/0] via 10.1.1.1

D. S 192.168.1.0/30 [1/0] via 10.1.1.1

What provides connection redundancy increased bandwidth and load sharing between a wireless LAN controller and a Layer 2 switch?

A. VLAN trunking

B. tunneling

C. Afirst hop redundancy

D. link aggregation

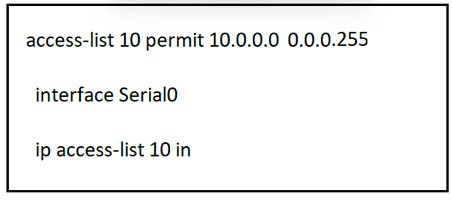

Refer to the exhibit.

A network administrator must permit traffic from the 10.10.0.0/24 subnet to the WAN on interlace Seria10. What is the effect of the configuration as the administrator applies the command?

A. The permit command fails and returns an error code.

B. The router accepts all incoming traffic to Seria10 with the last octet of the source IP set to 0.

C. The sourced traffic from IP range 10.0.0.0 -10.0.0.255 is allowed on Seria10.

D. The router fails to apply the access list to the interface.

What does a switch do when it receives a frame whose destination MAC address is missing from the MAC address table?

A. It floods the frame unchanged across all remaining ports in the incoming VLAN.

B. It appends the table with a static entry for the MAC and shuts down the port.

C. It updates the CAM table with the destination MAC address of the frame.

D. It changes the checksum of the frame to a value that indicates an invalid frame.

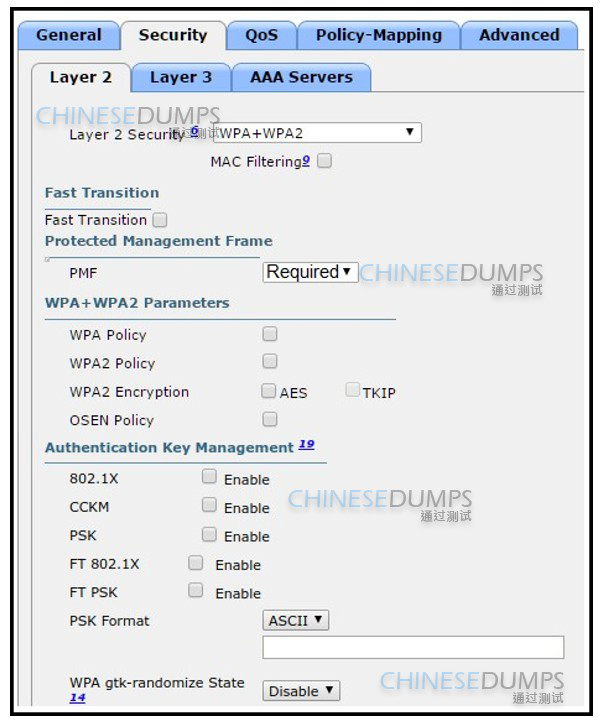

Refer to the exhibit.

The network engineer is configuring a new WLAN and is told to use a setup password for authentication instead of the RADIUS servers. Which additional set of tasks must the engineer perform to complete the configuration?

A. Disable PMF Enable PSK Enable 802.1x

B. Select WPA Policy Enable CCKM Enable PSK

C. Select WPA Policy Select WPA2 Policy Enable FT PSK

D. Select WPA2 Policy Disable PMF Enable PSK

What must a network administrator consider when deciding whether to configure a new wireless network with APs in autonomous mode or APs running in cloud-based mode?

A. Autonomous mode APs are less dependent on an underlay but more complex to maintain than APs in cloud-based mode.

B. Cloud-based mode APs relay on underlays and are more complex to maintain than APs in autonomous mode.

C. Cloud-based mode APs are easy to deploy but harder to automate than APs in autonomous mode.

D. Autonomous mode APs are easy to deploy and automate than APs in cloud-based mode.

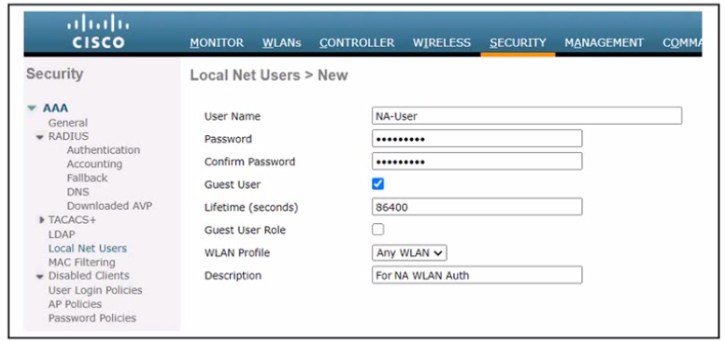

Refer to the exhibit.

Wireless LAN access must be set up to force all clients from the NA WLAN to authenticate against the local database. The WLAN is configured for local EAP authentication. The time that users access the network must not be limited. Which action completes this configuration?

A. Uncheck the Guest User check box

B. Check the Guest User Role check box

C. Set the Lifetime (seconds) value to 0

D. Clear the Lifetime (seconds) value

Refer to the exhibit.

A network engineer must configure NETCONF. After creating the configuration, the engineer gets output from the command show line but not from show running- config. Which command completes the configuration?

A. Device(config)# netconf lock-time 500

B. Device(config)# netconf max-message 1000

C. Device(config)# no netconf ssh acl 1

D. Device(config)# netconf max-sessions 100

Which encryption method is used by WPA3?

A. PSK

B. TKIP

C. SAE

D. AES

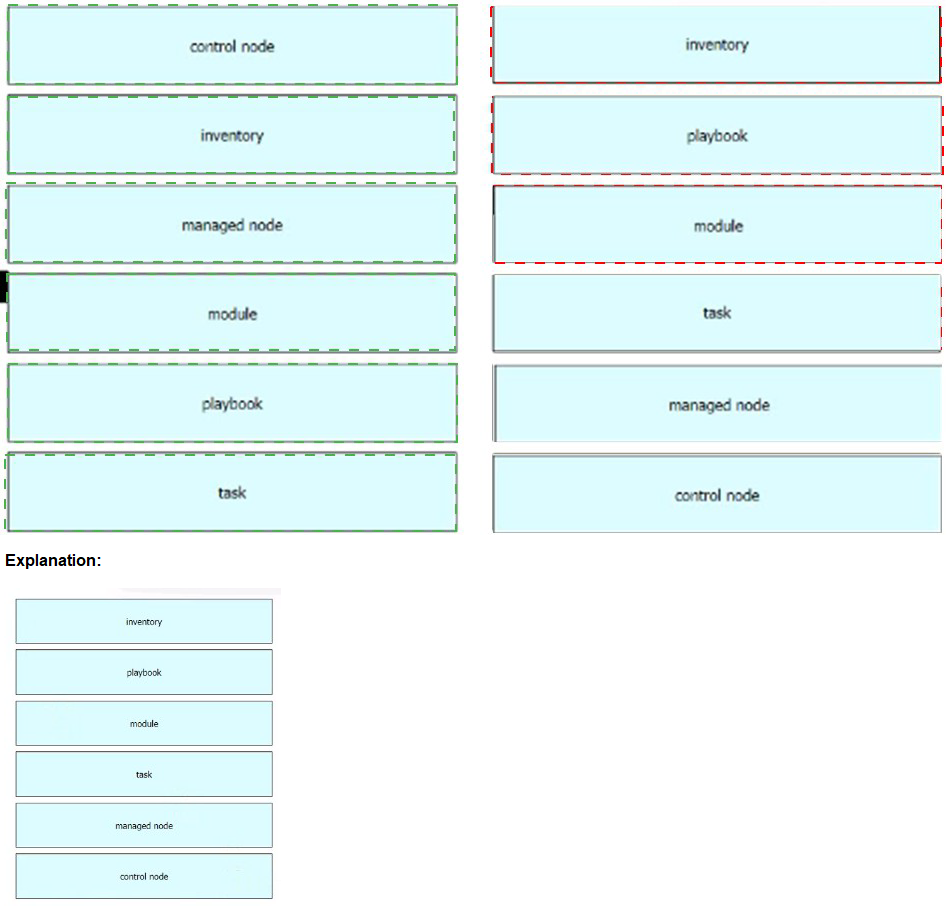

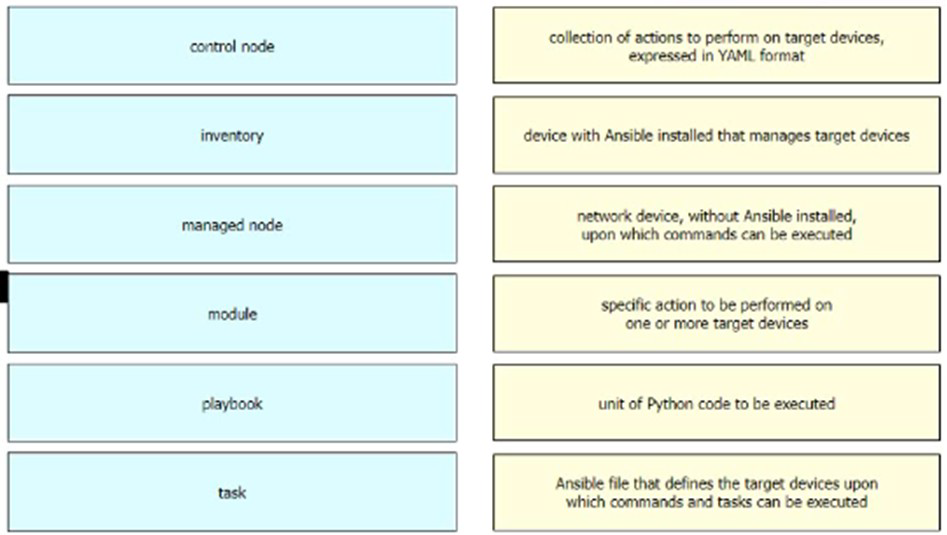

Drag and drop the Ansible terms from the left onto the right.

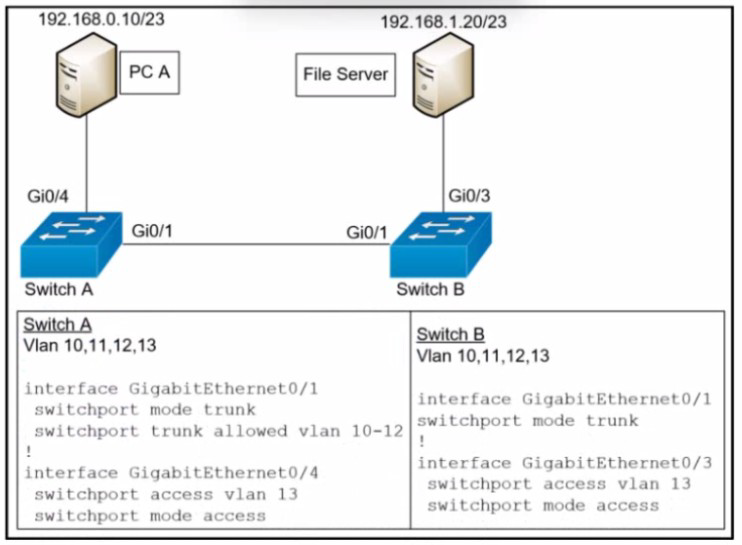

Refer to the exhibit.
A network engineer must configure communication between PC A and the file server. Which commend must be configured on switch A to prevent interruption of other communications?

A. switch port trunk allowed vlan 12

B. switchport trunk allowed vlan none

C. switchport trunk allowed vlan add 13

D. switch port trunk allowed vlan remove 10-11
