Free 200-301 Practice Test Questions 2026

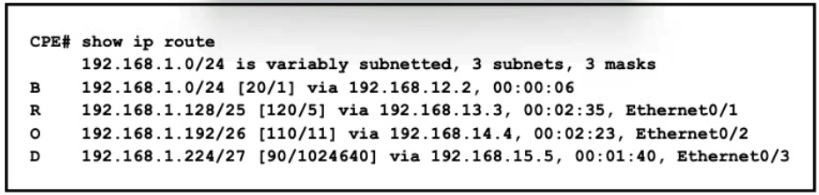

Refer to the exhibit.

All traffic enters the CPE router from interface Serial0/3 with an IP address of 192 168 50 1
Web traffic from the WAN is destined for a LAN network where servers are load-balanced
An IP packet with a destination address of the HTTP virtual IP of 192 1681 250 must be
forwarded Which routing table entry does the router use?

A. 192.168.1.0/24 via 192.168.12.2

B. 192.168.1.128/25 via 192.168.13.3

C. 192.168.1.192/26 via 192.168.14.4

D. 192.168.1.224/27 via 192.168.15.5

Which characteristic differentiates the concept of authentication from authorization and accounting?

A. user-activity logging

B. service limitations

C. consumption-based billing

D. identity verification

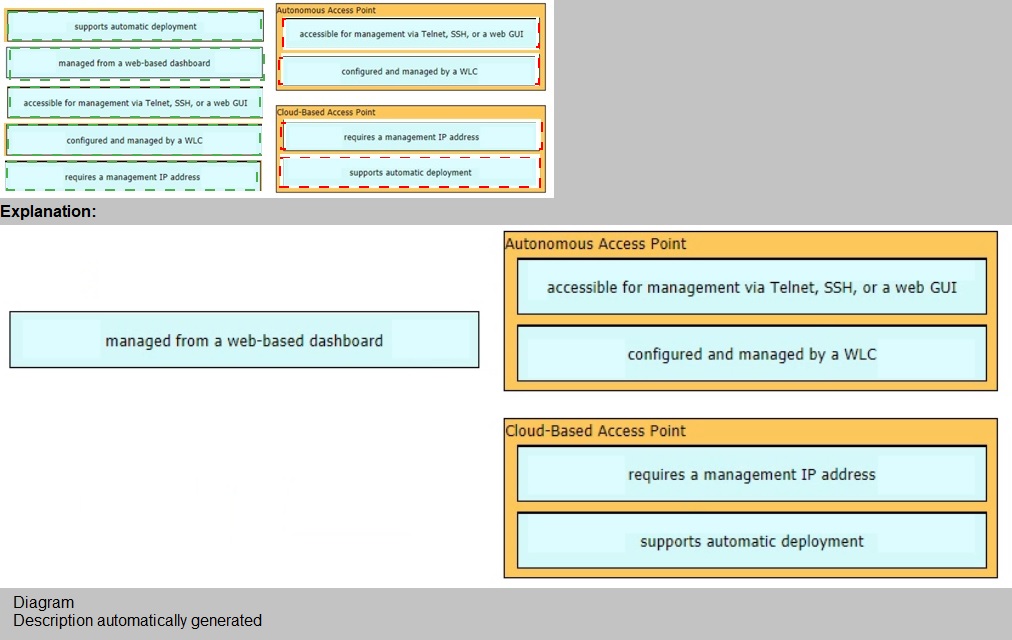

Drag and drop the facts about wireless architectures from the left onto the types of access point on the right. Not all options are used.

Refer to the exhibit.

Router R1 must be configured to reach the 10.0.3.0/24 network from the 10.0.1.0/24 segment.
Which command must be used to configure the route?

A. ip route 10.0.3.0 0.255255.255 10.0.4.2

B. route add 10.0.3.0 mask 255.255.255.0 10.0.4.3

C. Ip route 10.0.3.0 255.255.255.0 10.0.4.3

D. route add 10.0.3.0 0.255.255.255 10.0.4.2

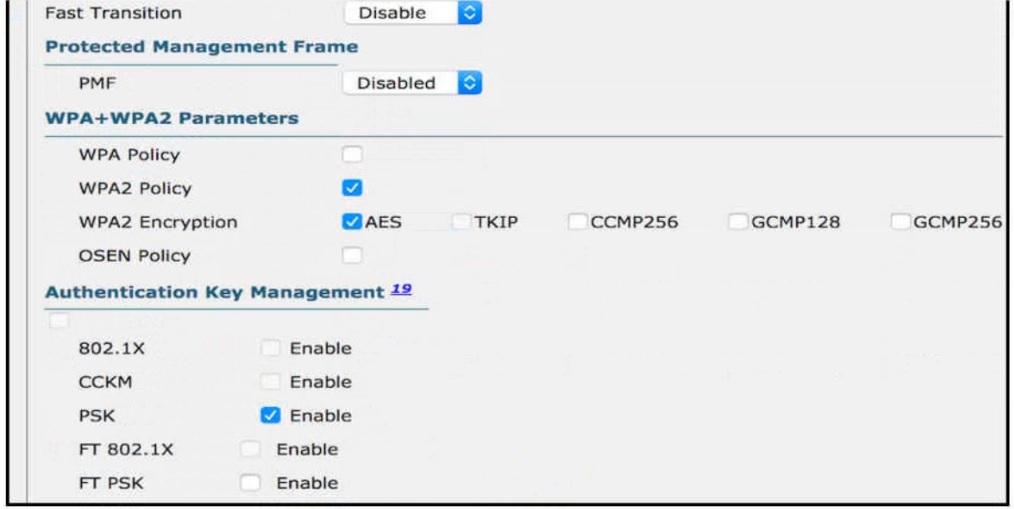

Refer to the exhibit.

Users need to connect to the wireless network with IEEE 802. 11r-compatible devices. The connection must be maintained as users travel between floors or to other areas in the building What must be the configuration of the connection?

A. Select the WPA Policy option with the CCKM option.

B. Disable AES encryption.

C. Enable Fast Transition and select the FT 802.1x option.

D. Enable Fast Transition and select the FT PSK option.

Which QoS queuing method discards or marks packets that exceed the desired bit rate of traffic flow?

A. shaping

B. policing

C. CBWFQ

D. LLQ

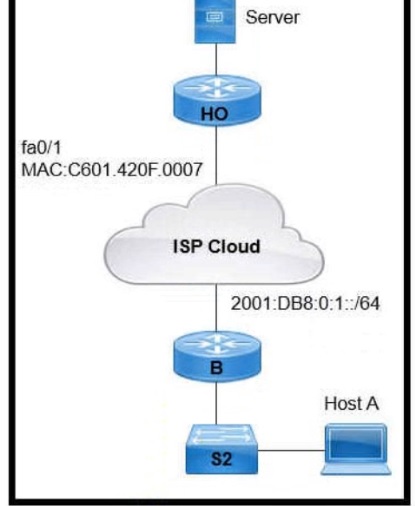

Refer to the exhibit.

An engineer is configuring the HO router. Which IPv6 address configuration must be applied to the router fa0'1 interface for the router to assign a unique 64-brt IPv6 address to Itself?

A. ipv6 address 2001:DB8:0:1:C601:42FF:FE0F:7/64

B. ipv6 address 2001:DB8:0:1:C601:42FE:800F:7/64

C. ipv6 address 2001 :DB8:0:1:FFFF:C601:420F:7/64

D. iov6 address 2001 :DB8:0:1:FE80:C601:420F:7/64

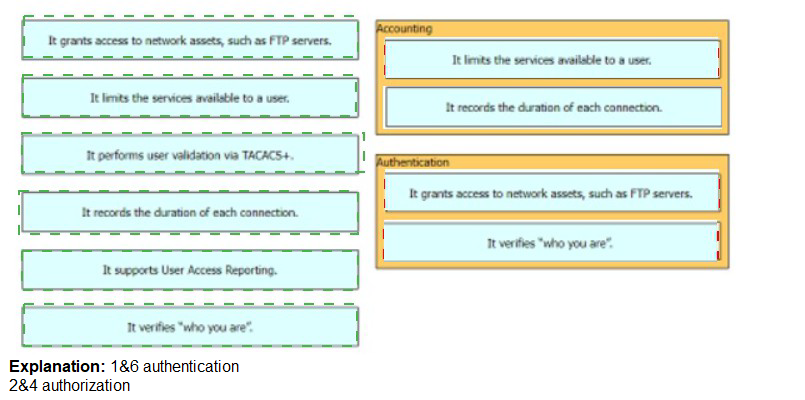

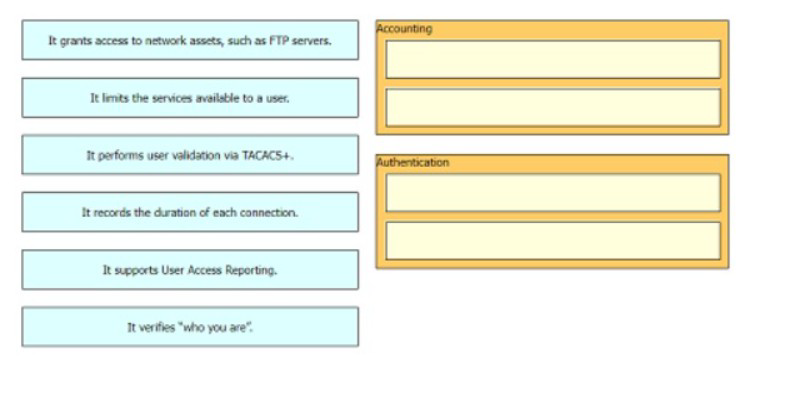

Drag and drop the statements about AAA services firm the left onto the corresponding AAA
services on the right Not all options are used.

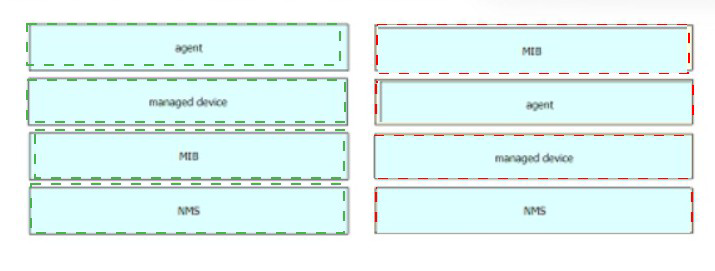

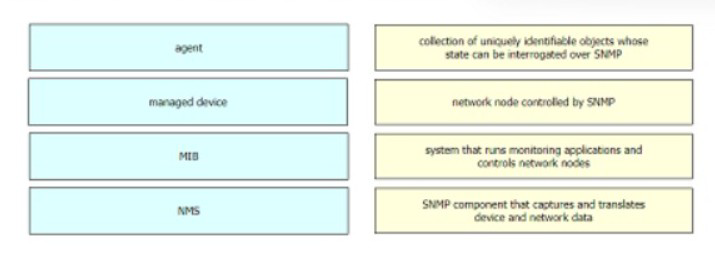

Drag and drop the SNMP components from the left onto the description on the right.

Which enhancement is implemented in WPA3?

A. applies 802.1x authentication

B. usesTKIP

C. employs PKI to identify access points

D. protects against brute force attacks

Refer to the exhibit.

Why is a first-hop redundancy protocol implemented?

A. to protect against default gateway failures

B. to prevent loops in a network

C. to enable multiple switches to operate as a single unit

D. to provide load-sharing for a multilink segment
