Free 200-301 Practice Test Questions 2026

Drag and drop the REST API call methods for HTTP from the left onto the actions they perform on the right Not all methods are used.

Which WLC management connection type is vulnerable to man-in-the-middle attacks?

A.

SSH

B. HTTPS

C. Telnet

D. console

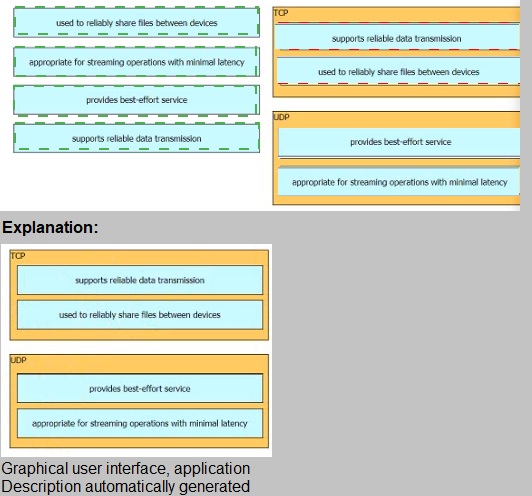

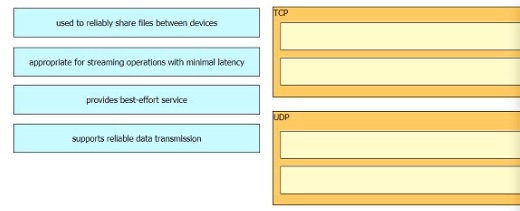

Drag and drop the TCP or UDP details from the left onto their corresponding protocols on the right.

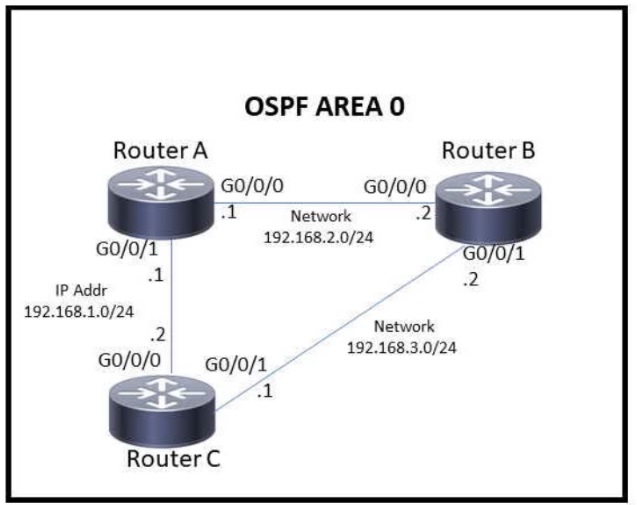

Refer to the exhibit.

Which action must be taken to ensure that router A is elected as the DR for OSPF area 0?

A. Configure the OSPF priority on router A with the lowest value between the three routers.

B. Configure router B and router C as OSPF neighbors of router A.

C. Configure the router A interfaces with the highest OSPF priority value within the area.

D. Configure router A with a fixed OSPF router ID

What is a requirement when configuring or removing LAG on a WLC?

A. The Incoming and outgoing ports for traffic flow must be specified If LAG Is enabled.

B. The controller must be rebooted after enabling or reconfiguring LAG.

C. The management interface must be reassigned if LAG disabled.

D. Multiple untagged interfaces on the same port must be supported.

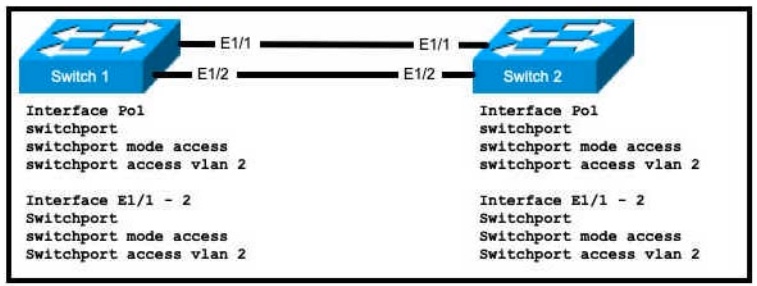

Refer to the exhibit

An engineer is configuring an EtherChannel using LACP between Switches 1 and 2 Which configuration must be applied so that only Switch 1 sends LACP initiation packets?

A. Switch 1 (config-if)#channel-group 1 mode on
Swrtch2(config-if)#channel-group 1 mode passive

B. Switch1(config-if)#channel-group 1 mode passive
Switch2(config-if)#channel-group 1 mode active

C. Switch1{config-if)£channel-group 1 mode active
Switch2(config-if)#channel-group 1 mode passive

D. Switch1(config-if)#channel-group 1 mode on
Switch2(config-if)#channel-group 1 mode active

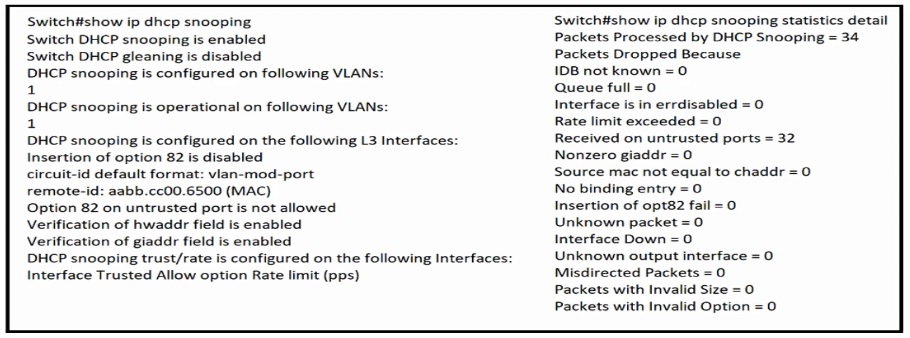

Refer to the exhibit.

The DHCP server and clients are connected to the same switch. What is the next step to complete the DHCP configuration to allow clients on VLAN 1 to receive addresses from the DHCP server?

A. Configure the ip dhcp snooping trust command on the interlace that is connected to the DHCP client.

B. Configure the ip dhcp relay information option command on the interface that is connected to the DHCP client.

C. Configure the ip dhcp snooping trust command on the interface that is connected to the DHCP server.

D. Configure the Ip dhcp relay infor

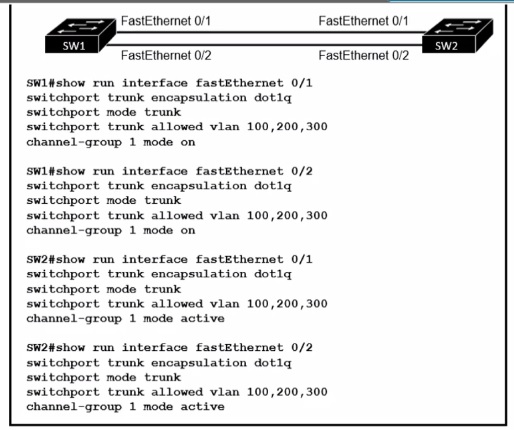

Refer to the exhibit.

An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work. Which additional task allows the two switches to establish an LACP port channel?

A. Change the channel-group mode on SW2 to auto

B. Change the channel-group mode on SW1 to desirable.

C. Configure the interface port-channel 1 command on both switches.

D. Change the channel-group mode on SW1 to active or passive.

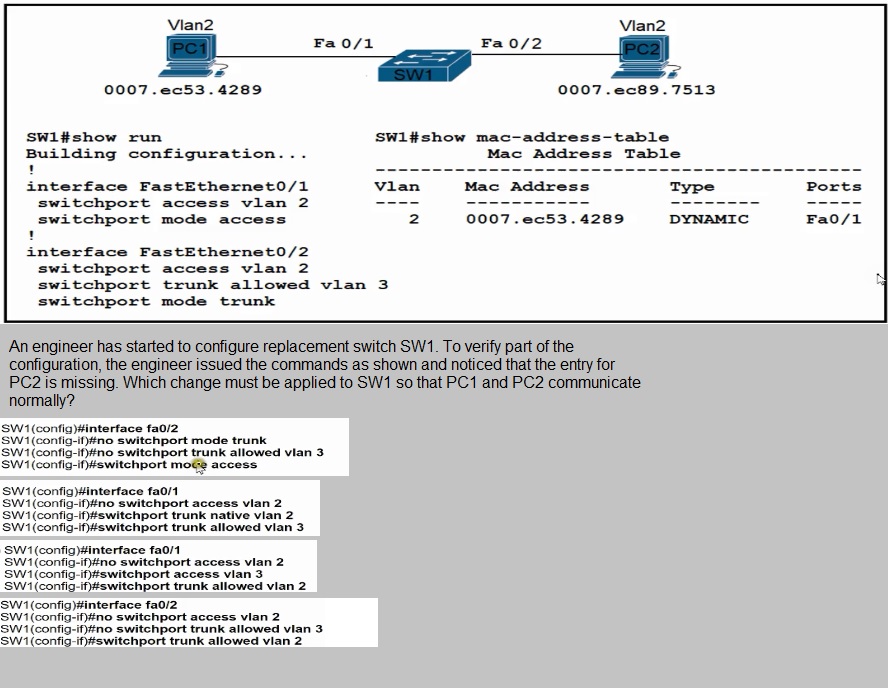

Refer to the exhibit.

A. Option A

B. Option B

C. Option C

D. Option D

After a recent security breach and a RADIUS failure, an engineer must secure the console port of each enterprise router with a local username and password. Which configuration must the engineer apply to accomplish this task?

A. Option A

B. Option B

C. Option C

D. Option D

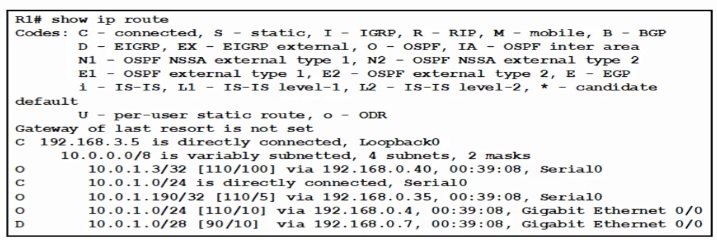

Refer to the exhibit.

Traffic sourced from the loopback0 Interface is trying to connect via ssh to the host at 10.0.1.15. What Is the next hop to the destination address?<

A. 192.168.0.7

B. 192.168.0.4

C. 192.168.0.40

D. 192.168.3.5

Which wireless security protocol relies on Perfect Forward Secrecy?

A. WPA3

B. WPA

C. WEP

D. WPA2
