Free 200-301 Practice Test Questions 2026

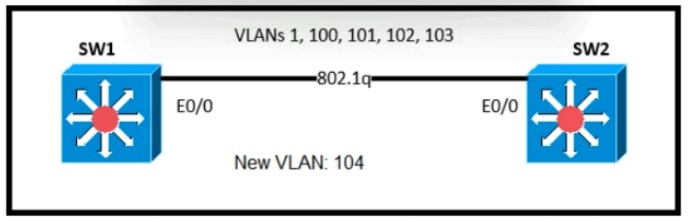

Refer to the exhibit.

An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?

A. switchport trunk allowed vlan 100-104

B. switchport trunk allowed vlan add 104

C. switchport trunk allowed vlan all

D. switchport trunk allowed vlan 104

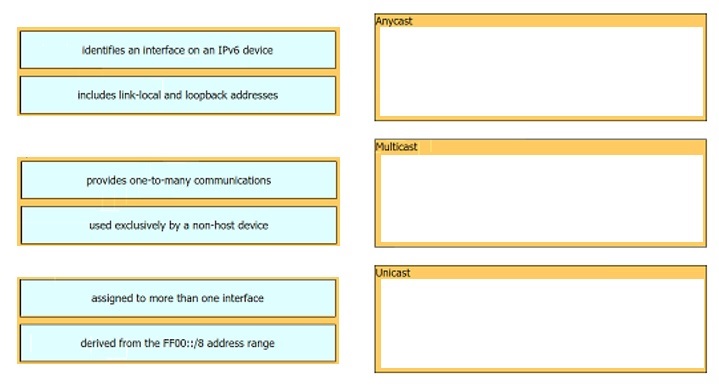

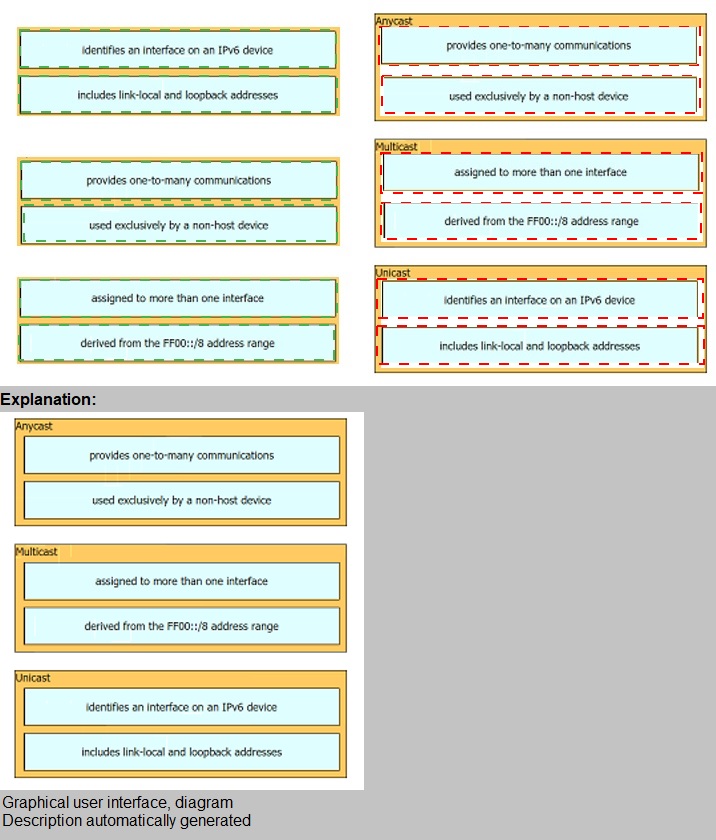

Drag and drop the IPv6 address details from the left onto the corresponding types on the right.

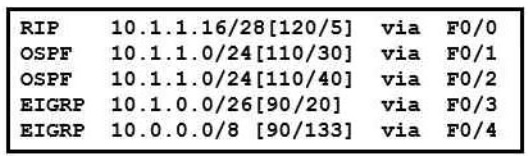

Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?

A. F0/4

B. F0/0

C. F0/1

D. F0/3

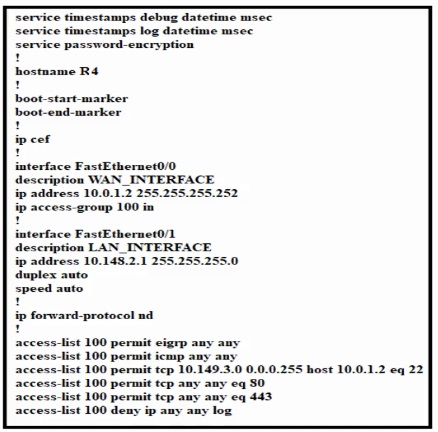

Refer to the exhibit

Which configuration enables DHCP addressing for hosts connected to interface
FastEthernetO/1 on router R4?

A. interface FastEthernet0/0
ip helper-address 10.0.1.1
i
access-list 100 permit udp host 10.0.1.1 eq bootps host 10.148.2.1

B. interface FastEthernot0/1
ip helper-address 10.0.1.1
!
access-list 100 permit tcp host 10.0.1.1 eq 67 host 10.148.2.1

C. interface FastEthernetO/0
ip helper-address 10.0.1.1
I
access-list 100 permit host 10.0.1.1 host 10.148.2.1 eq bootps

D. interface FastEthernet0/1
ip helper-address 10.0.1.1
!
access-list 100 permit udp host 10.0.1.1 eq bootps host 10.148.2.1

Refer to Exhibit.

Why would VRRP be implemented when configuring a new subnet in a multivendor environment?

A. when a gateway protocol is required that support more than two Cisco devices for redundancy

B. to enable normal operations to continue after a member failure without requiring a
change In a host ARP cache

C. to ensure that the spanning-tree forwarding path to the gateway is loop-free

D. to interoperate normally with all vendors and provide additional security features for Cisco devices

Which two components comprise part of a PKI? (Choose two.)

A. preshared key that authenticates connections

B. RSA token

C. CA that grants certificates

D. clear-text password that authenticates connections

E. one or more CRLs

Which QoS per-hop behavior changes the value of the ToS field in the IPv4 packet header?

A. shaping

B. classification

C. policing

D. marking

Which Layer 2 switch function encapsulates packets for different VLANs so that the packets traverse the same port and maintain traffic separation between the VLANs?

A. VLAN numbering

B. VLAN DSCP

C. VLAN tagging

D. VLAN marking

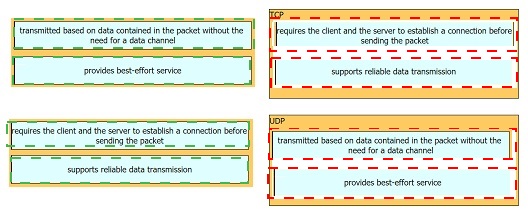

Drag and drop the TCP or UDP details from the left onto their corresponding protocols on the right.

Which QoS traffic handling technique retains excess packets in a queue and reschedules these packets for later transmission when the configured maximum bandwidth has been surpassed?

A. weighted random early detection

B. traffic policing

C. traffic shaping

D. traffic prioritization

What provides centralized control of authentication and roaming In an enterprise network?

A. a lightweight access point

B. a firewall

C. a wireless LAN controller

D.

a LAN switch
