Refer to the exhibit.

An engineer assumes a configuration task from a peer Router A must establish an OSPF neighbor relationship with neighbor 172 1 1 1 The output displays the status of the adjacency after 2 hours. What is the next step in the configuration process for the routers to establish an adjacency?

A. Configure router A to use the same MTU size as router B.

B. Set the router B OSPF ID to a nonhost address.

C. Configure a point-to-point link between router A and router B.

D. Set the router B OSPF ID to the same value as its IP address

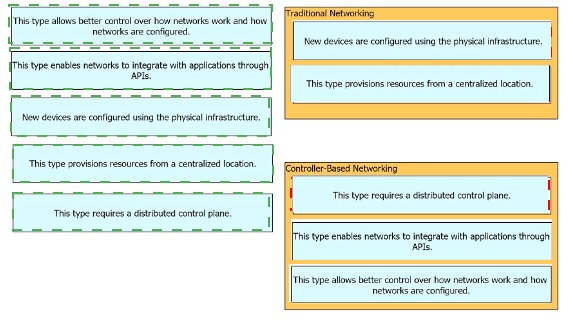

Drag and drop the statements about networking from the left onto the corresponding networking types on the right.

Refer to the exhibit.

Routers R1 and R3 have the default configuration The router R2 priority is set to 99 Which commands on R3 configure it as the DR in the 10.0 4.0/24 network?

A. R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 100

B. R3(config)#interface Gig0/0 R3(config-if)#ip ospf priority 100

C. R3(config)#interface Gig0/0 R3(config-if)i=ip ospf priority 1

D. R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 0

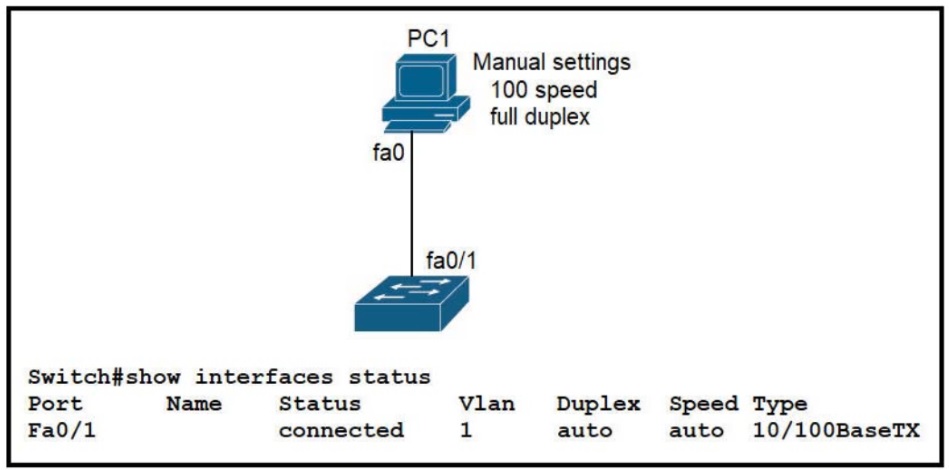

Refer to the exhibit.

The link between PC1 and the switch is up. but it is performing poorly. Which interface condition is causing the performance problem?

A. There is a duplex mismatch on the interface

B. There is an issue with the fiber on the switch interface.

C. There is a speed mismatch on the interface.

D. There is an interface type mismatch

Refer to the exhibit.

Which command configures OSPF on the point-to-point link between routers R1 and R2?

A. router-id 10.0.0.15

B. neighbor 10.1.2.0 cost 180

C. ipospf priority 100

D. network 10.0.0.0 0.0.0.255 area 0

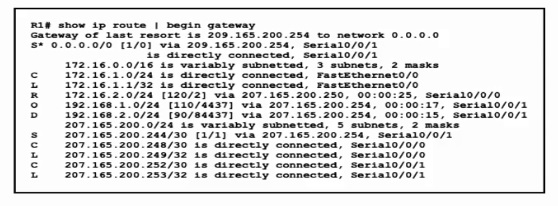

Refer to the exhibit

Which network prefix was learned via EIGRP?

A. 172.16.0.0/16

B. 192.168.2.0/24

C. 207.165.200.0/24

D. 192.168.1.0/24

Which value is the unique identifier that an access point uses to establish and maintain wireless connectivity to wireless network devices?

A. VLANID

B. SSID

C. RFID

D. WLANID

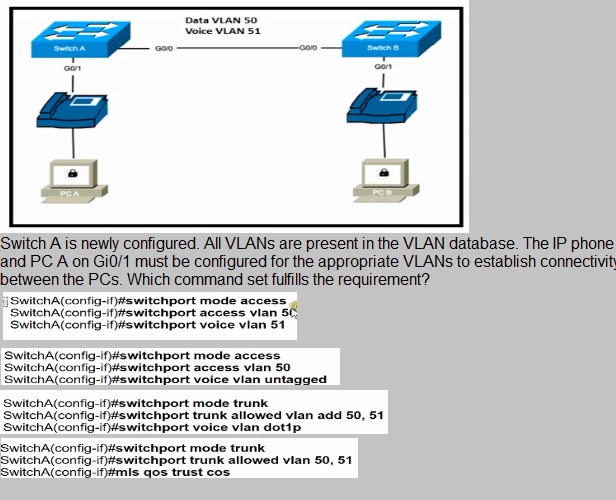

Refer to the exhibit.

A. Option A

B. Option B

C. Option C

D. Option D

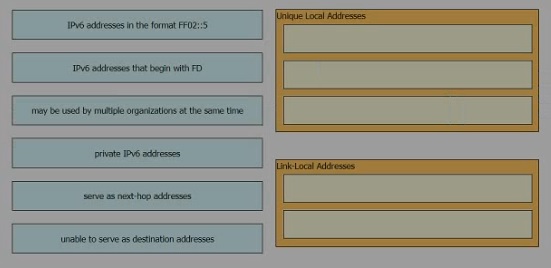

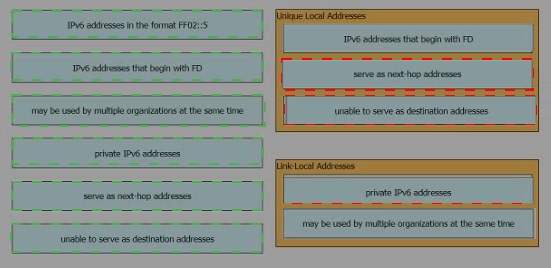

Drag and drop the IPv6 address description from the left onto the IPv6 address types on the right. Not all options are used

What is an expected outcome when network management automation is deployed?

A. A distributed management plane must be used.

B. Software upgrades are performed from a central controller

C. Complexity increases when new device configurations are added

D. Custom applications are needed to configure network devices

OSPF must be configured between routers R1 and R2. Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?

A. router ospf 1
network 192.168.1.1 0.0.0.0 area 0
interface e1/1
ip address 192.168.1.1 255.255.255.252
ip ospf network broadcast

B. router ospf 1
network 192.168.1.1 0.0.0.0 area 0
interface e1/1
ip address 192.168.1.1 255.255.255.252
ip ospf network point-to-point

C. router ospf 1
network 192.168.1.1 0.0.0.0 area 0
interface e1/1
ip address 192.168.1.1 255.255.255.252
ip ospf cost 0

D. router ospf 1
network 192.168.1.1 0.0.0.0 area 0
hello interval 15
interface e1/1
Ip address 192.168.1.1 255.255.255.252

A network administrator is setting up a new IPv6 network using the 64-bit address 2001
0EB8 00C1 2200:0001 0000 0000 0331/64 To simplify the configuration the administrator
has decided to compress the address Which IP address must the administrator configure?

A. ipv6 address 21:EB8:C1:2200:1::331/64

B. ipv6 address 2001:EB8:C1:22:1::331/64

C. ipv6 address 2001 :EB8:C 1:2200.1 ::331-64

D. ipv6 address 2001:EB8:C1:2200:1:0000:331/64
