Free 200-301 Practice Test Questions 2026

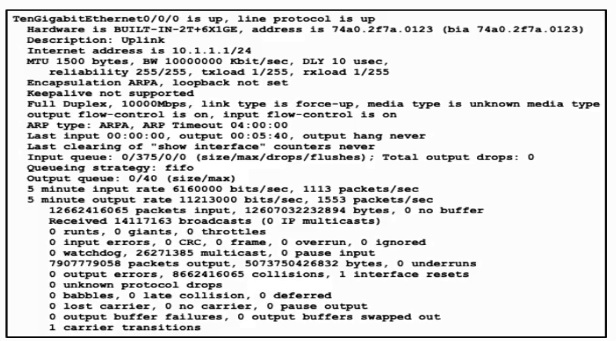

Refer to the exhibit

Traffic that is flowing over interface TenGigabitEthernet0/0 experiences slow transfer speeds. What is the reason for the issue?

A. heavy traffic congestion

B. a duplex incompatibility

C. a speed conflict

D. queuing drops

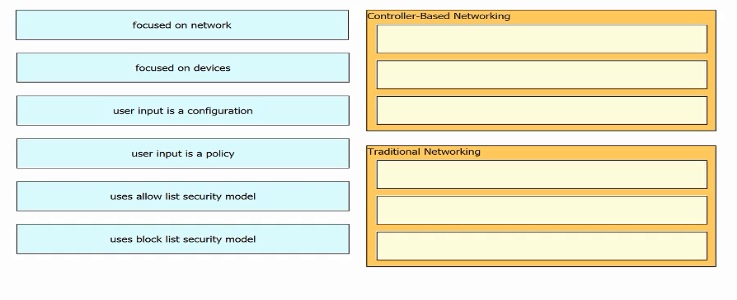

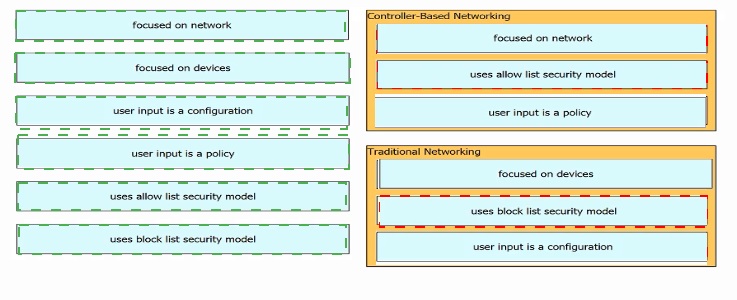

Drag and drop the characteristics of networking from the left onto the networking types on the right

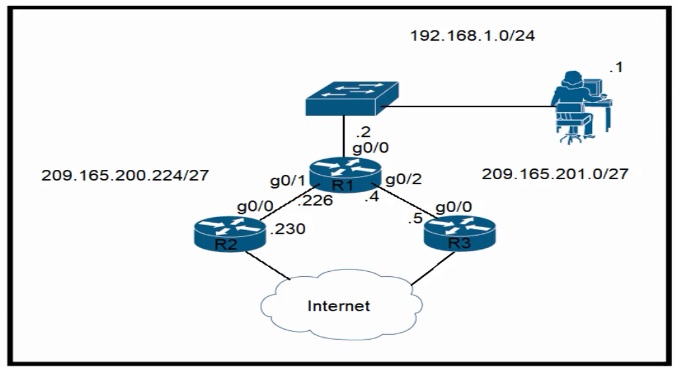

Refer to the exhibit.

Router R1 currently is configured to use R3 as the primary route to the Internet, and the route uses the default administrative distance settings. A network engineer must configure R1 so that it uses R2 as a backup, but only if R3 goes down. Which command must the engineer configure on R1 so that it correctly uses R2 as a backup route, without changing the administrative distance configuration on the link to R3?

A. ip route 0.0.0.0 0.0.0.0 g0/1 1

B. ip route 0.0.0.0 0.0.0.0 209.165.201.5 10

C. ip route 0.0.0.0 0.0.0.0 209.165.200.226 1

D. ip route 0,0.0.0 0.0.0.0 g0/1 6

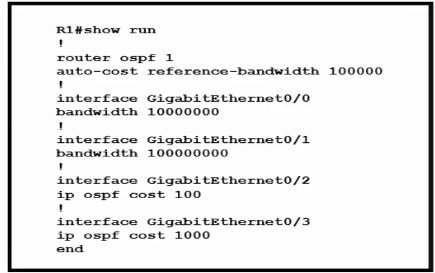

Refer to the exhibit

Router R1 resides in OSPF Area 0. After updating the R1 configuration to influence the paths that it will use to direct traffic, an engineer verified that each of the four Gigabit interfaces has the same route to 10.10.0.0/16. Which interface will R1 choose to send traffic to reach the route?

A. GigabitEthernet0/0

B. GigabltEthornet0/1

C. GigabitEthernet0/2

D. GigabitEthernet0/3

A network engineer must implement an IPv6 configuration on the vlan 2000 interface to create a routable locally-unique unicast address that is blocked from being advertised to the internet. Which configuration must the engineer apply?

A. interface vlan 2000
ipv6 address ffc0:0000:aaaa::1234:2343/64

B. interface vlan 2000
Ipv6 address fc00:0000:aaaa:a15d:1234:2343:8aca/64

C. interface vlan 2000
ipv6 address fe80;0000:aaaa::1234:2343/64

D. interface vlan 2000
ipv6 address fd00::1234:2343/64

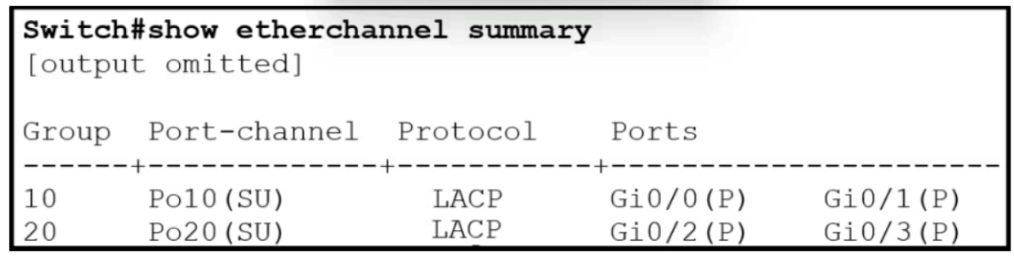

Refer to the exhibit.

Which two commands when used together create port channel 10? (Choose two.)

A. int range g0/0-1
channel-group 10 mode active

B. int range g0/0-1 chanm.l-group 10 mode desirable

C. int range g0/0-1
channel-group 10 mode passive

D. int range g0/0-1 channel-group 10 mode auto

E. int range g0/0-1 channel-group 10 mode on

Which type of network attack overwhelms the target server by sending multiple packets to a port until the half-open TCP resources of the target are exhausted?

A. SYIM flood

B. reflection

C. teardrop

D. amplification

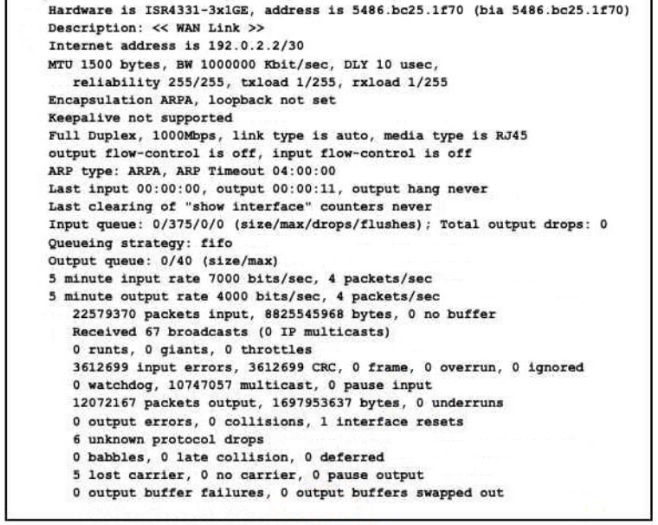

Refer to the exhibit

What is a reason for poor performance on the network interface?

A. The interface is receiving excessive broadcast traffic.

B. The cable connection between the two devices is faulty.

C. The interface is operating at a different speed than the connected device.

D. The bandwidth setting of the interface is misconfigured

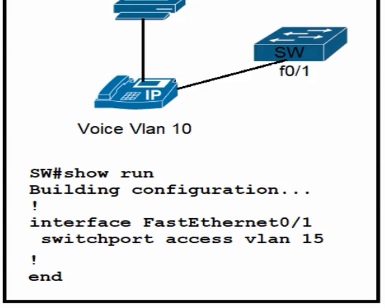

Refer to the exhibit.

All VLANs are present in the VLAN database. Which command sequence must be applied to complete the configuration?

A. Interface FastEthernet0/1 switchport trunk native vlan 10 switchport trunk allowed vlan 10,15

B. Interface FastEthernet0/1 switchport mode trunk switchport trunk allowed vlan 10,15

C. interface FastEthernet0/1 switchport mode access switchport voice vlan 10

D. Interface FastEthernet0/1 switchport trunk allowed vlan add 10 vlan 10 private-vlan isolated

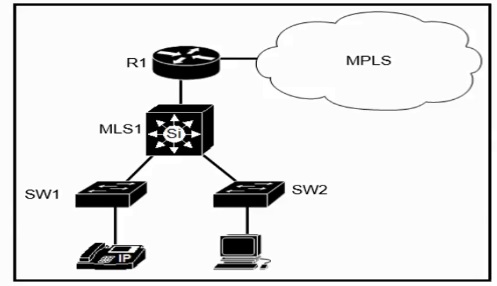

Refer to the exhibit.

Which plan must be Implemented to ensure optimal QoS marking practices on this network?

A. As traffic traverses MLS1 remark the traffic, but trust all markings at the access layer.

B. Trust the IP phone markings on SW1 and mark traffic entering SW2 at SW2.

C. Remark traffic as it traverses R1 and trust all markings at the access layer.

D. As traffic enters from the access layer on SW1 and SW2. trust all traffic markings.

A network engineer is configuring a switch so that it is remotely reachable via SSH The engineer has already configured the host name on the router Which additional command must the engineer configure before entering the command to generate the RSA key?

A. password password

B. crypto key generate rsa modulus 1024

C. ip domain-name domain

D. ip ssh authentication-retries 2

Refer to the exhibit.

Web traffic is coming in from the WAN interface. Which route takes precedence when the router is processing traffic destined for the LAN network at 10 0.10.0/24?

A. via next-hop 10.0.1.5

B. via next-hop 10 0 1.4

C. via next-hop 10.0 1.50

D. via next-hop 10.0 1 100
